pAAV-CAG-H2BmGreenLantern
(Plasmid #177332)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 177332 Standard format: Plasmid sent in bacteria as agar stab 1 $85

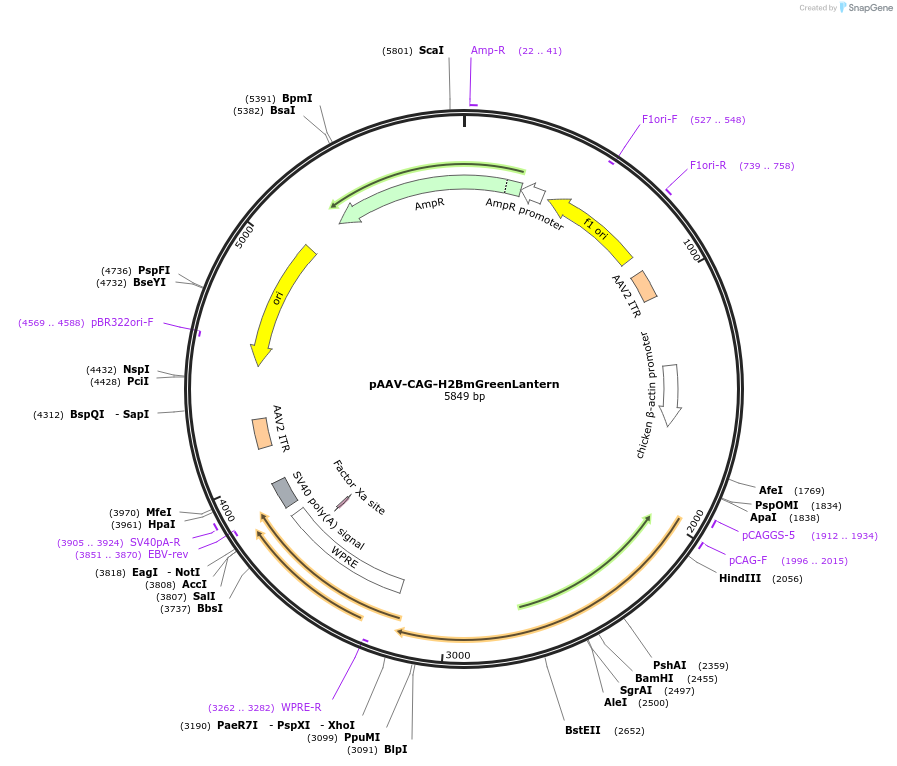

Backbone

  • Vector backbone
    pAAV-CAG-GFP
  • Backbone manufacturer
    Boyden laboratory
  • Backbone size w/o insert (bp) 4714
  • Total vector size (bp) 5858
  • Modifications to backbone
    The GFP of the original vector was excised with XbaI and XhoI and replaced with the H2BmGL
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    H2B
  • Species
    R. norvegicus (rat); Rat
  • Insert Size (bp)
    1144
  • Mutation
    This fusion protein was optimized to the Human codon usage.
  • GenBank ID
    NP_001100822
  • Entrez Gene
    Hist1h2bq (a.k.a. Hist1h2bh)
  • Promoter CAG
  • Tag / Fusion Protein
    • mGreenLantern (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XbaI or HindIII (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer pCAG-F or pCAGGS-5
  • 3′ sequencing primer WPRE-R
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

For more information, also see Campbell et al. 2020 "mGreenLantern: a bright monomeric fluorescent protein with rapid expression and cell filling properties for neuronal imaging" PNAS, https://doi.org/10.1073/pnas.2000942117.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-CAG-H2BmGreenLantern was a gift from Murray Blackmore & Gregory Petsko & Pantelis Tsoulfas (Addgene plasmid # 177332 ; http://n2t.net/addgene:177332 ; RRID:Addgene_177332)
  • For your References section:

    Brain-wide analysis of the supraspinal connectome reveals anatomical correlates to functional recovery after spinal injury. Wang Z, Romanski A, Mehra V, Wang Y, Brannigan M, Campbell BC, Petsko GA, Tsoulfas P, Blackmore MG. Elife. 2022 Jul 15;11. pii: 76254. doi: 10.7554/eLife.76254. 10.7554/eLife.76254 PubMed 35838234
