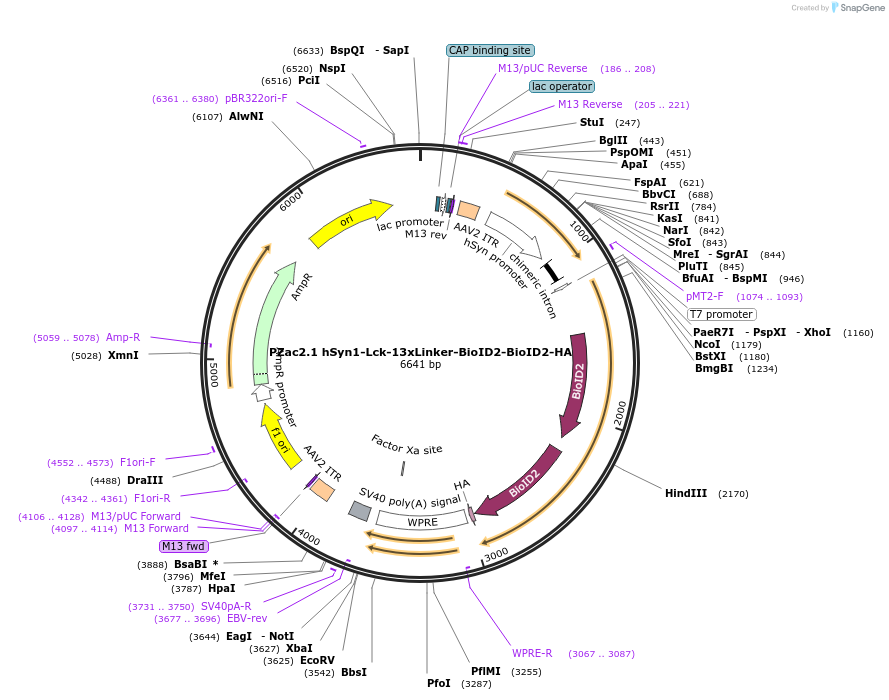

PZac2.1 hSyn1-Lck-13xLinker-BioID2-BioID2-HA
(Plasmid #176854)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 176854 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    PZac2.1
  • Backbone manufacturer
    Khakh lab
  • Backbone size w/o insert (bp) 4824
  • Total vector size (bp) 6641
  • Vector type
    Bacterial Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Lck-13xLinker-BioID2-BioID2-HA
  • Alt name
    Lck-BioID2-HA
  • Species
    Aquifex aeolicus
  • Insert Size (bp)
    1817
  • Promoter hSyn1
  • Tag / Fusion Protein
    • HA (C terminal on insert)

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer taatacgactcactatagg
  • 3′ sequencing primer gtggtttgtccaaactcatc
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    PZac2.1 hSyn1-Lck-13xLinker-BioID2-BioID2-HA was a gift from Baljit Khakh (Addgene plasmid # 176854 ; http://n2t.net/addgene:176854 ; RRID:Addgene_176854)

  • For your References section:

    Astrocyte-neuron subproteomes and obsessive-compulsive disorder mechanisms. Soto JS, Jami-Alahmadi Y, Chacon J, Moye SL, Diaz-Castro B, Wohlschlegel JA, Khakh BS. Nature. 2023 Apr;616(7958):764-773. doi: 10.1038/s41586-023-05927-7. Epub 2023 Apr 12. 10.1038/s41586-023-05927-7 PubMed 37046092
