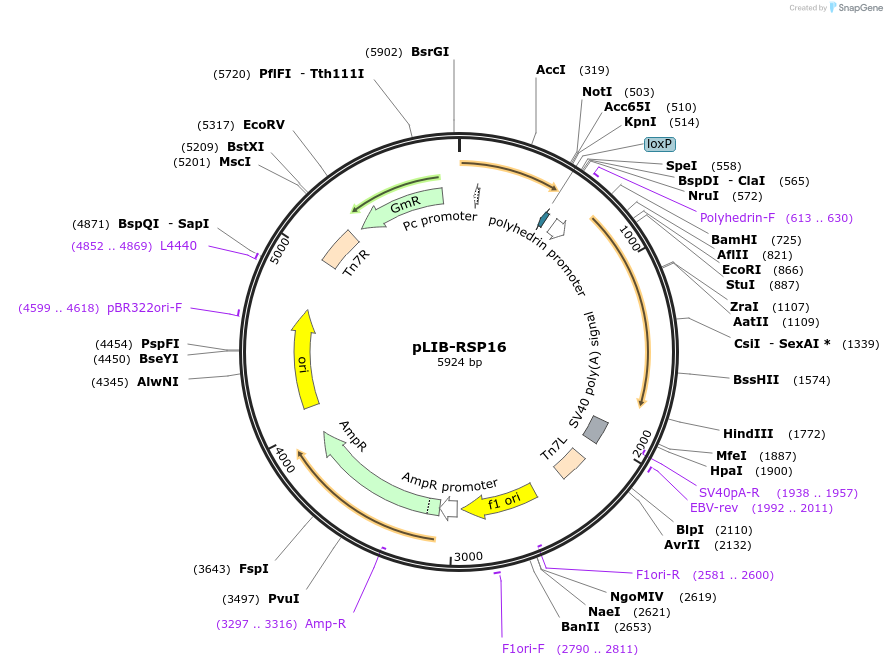

pLIB-RSP16
(Plasmid #176701)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 176701 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pLIB
  • Backbone size w/o insert (bp) 4886
  • Vector type
    Insect Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Mach1
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    RSP16
  • Species
    Chlamydomonas reinhardtii
  • Mutation
    None
  • Promoter polyhedrin

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer CGTAACAGTTTTGTAATAAAAAAACCTATAAATATTCCGG
  • 3′ sequencing primer GCAAGTAAAACCTCTACAAATGTGGTATGG
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLIB-RSP16 was a gift from Ron Vale (Addgene plasmid # 176701 ; http://n2t.net/addgene:176701 ; RRID:Addgene_176701)

  • For your References section:

    Structure of the radial spoke head and insights into its role in mechanoregulation of ciliary beating. Grossman-Haham I, Coudray N, Yu Z, Wang F, Zhang N, Bhabha G, Vale RD. Nat Struct Mol Biol. 2021 Jan;28(1):20-28. doi: 10.1038/s41594-020-00519-9. Epub 2020 Dec 14. 10.1038/s41594-020-00519-9 PubMed 33318704
