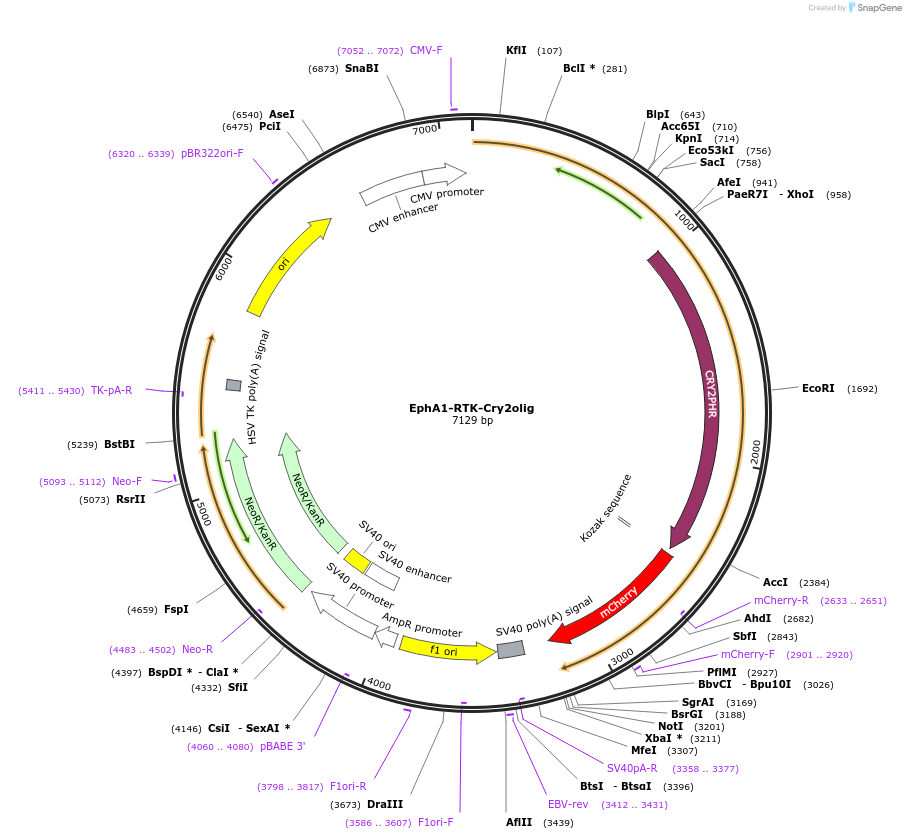

EphA1-RTK-Cry2olig
(Plasmid #176601)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 176601 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pmCherry-N1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4722
  • Total vector size (bp) 7216
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    EphA1rtk-Cry2olig-mCherry
  • Species
    H. sapiens (human), A. thaliana (mustard weed)
  • Insert Size (bp)
    3198
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site nheI (not destroyed)
  • 3′ cloning site bmti (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer SV40pA-R
    • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://doi.org/10.1101/2024.02.06.579139 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    EphA1-RTK-Cry2olig was a gift from Robert Hughes (Addgene plasmid # 176601 ; http://n2t.net/addgene:176601 ; RRID:Addgene_176601)

  • For your References section:

    Optogenetic Regulation of EphA1 RTK Activation and Signaling. Wurz AI, Zheng KS, Hughes RM. bioRxiv [Preprint]. 2024 Feb 7:2024.02.06.579139. doi: 10.1101/2024.02.06.579139. 10.1101/2024.02.06.579139 PubMed 38370612
