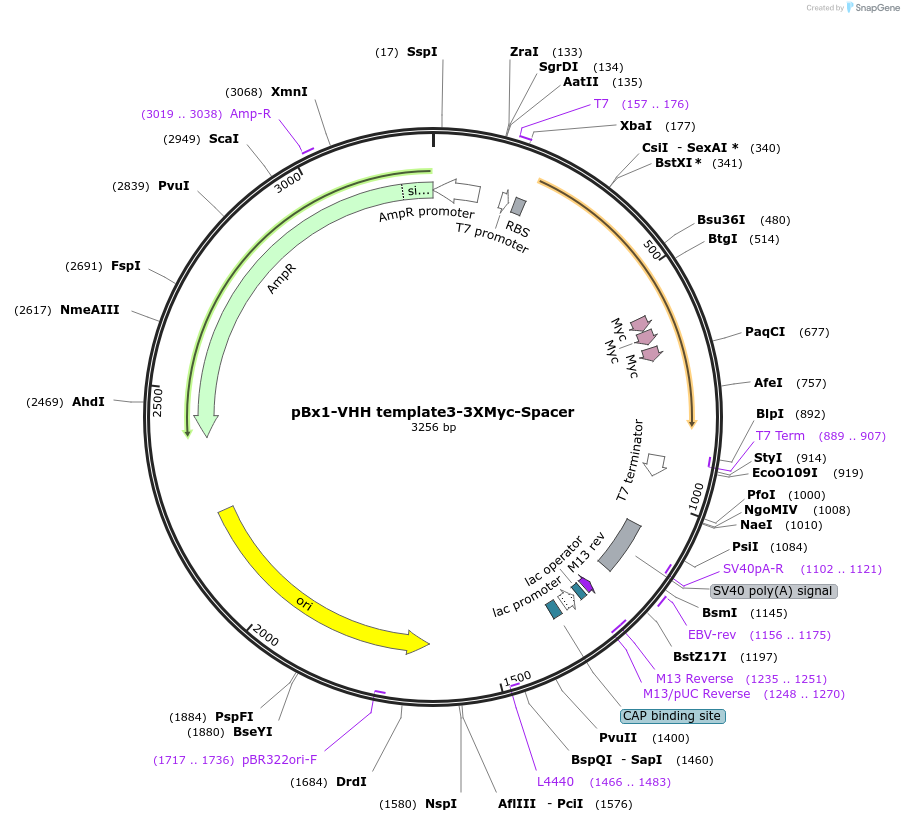

pBx1-VHH template3-3XMyc-Spacer
(Plasmid #176210)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 176210 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pBx1
  • Backbone size w/o insert (bp) 2561
  • Total vector size (bp) 3256
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    VHH template3-3XMyc-Spacer
  • Species
    Synthetic
  • Insert Size (bp)
    695
  • Promoter T7
  • Tag / Fusion Protein
    • Myc tag

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer GCCACCTGACGTCGACGGATCGGGA
  • 3′ sequencing primer TCCTTTCGGGCTTTGTTAGCAGCCG
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBx1-VHH template3-3XMyc-Spacer was a gift from Aviv Regev (Addgene plasmid # 176210 ; http://n2t.net/addgene:176210 ; RRID:Addgene_176210)

  • For your References section:

    A cell-free nanobody engineering platform rapidly generates SARS-CoV-2 neutralizing nanobodies. Chen X, Gentili M, Hacohen N, Regev A. Nat Commun. 2021 Sep 17;12(1):5506. doi: 10.1038/s41467-021-25777-z. 10.1038/s41467-021-25777-z PubMed 34535642
