Addgene

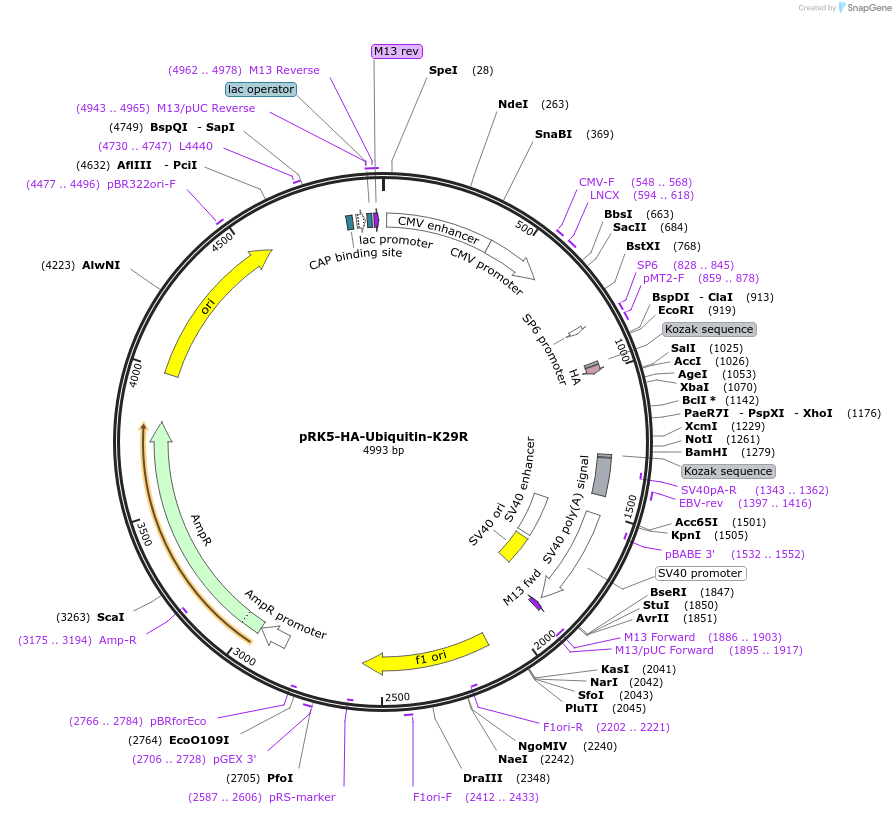

pRK5-HA-Ubiquitin-K29R
(Plasmid #17602)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 17602 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pRK5-HA
  • Backbone size w/o insert (bp) 4800
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Ubiquitin C
  • Alt name
    Ub
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    220
  • Mutation
    K29R; V5 deleted
  • Entrez Gene
    UBC (a.k.a. HMG20)
  • Tag / Fusion Protein
    • HA (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site SalI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer SP6
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please note that Addgene's sequencing results identified a V5 deletion in the ubiquitin sequence. This deletion was not intentional, but was present in the original source clone from which this plasmid was created (see associated publication for details).

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pRK5-HA-Ubiquitin-K29R was a gift from Ted Dawson (Addgene plasmid # 17602 ; http://n2t.net/addgene:17602 ; RRID:Addgene_17602)
  • For your References section:

    Parkin mediates nonclassical, proteasomal-independent ubiquitination of synphilin-1: implications for Lewy body formation. Lim KL, Chew KC, Tan JM, Wang C, Chung KK, Zhang Y, Tanaka Y, Smith W, Engelender S, Ross CA, Dawson VL, Dawson TM. J Neurosci. 2005 Feb 23. 25(8):2002-9. 10.1523/JNEUROSCI.4474-04.2005 PubMed 15728840
