FUW-C-prM-E-NS1
(Plasmid
#175281)
-
Purposelentiviral vector mediating bicistronic expression of the 4 genes of YFV-17D (C-prM-E-NS1) and EGFP.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 175281 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

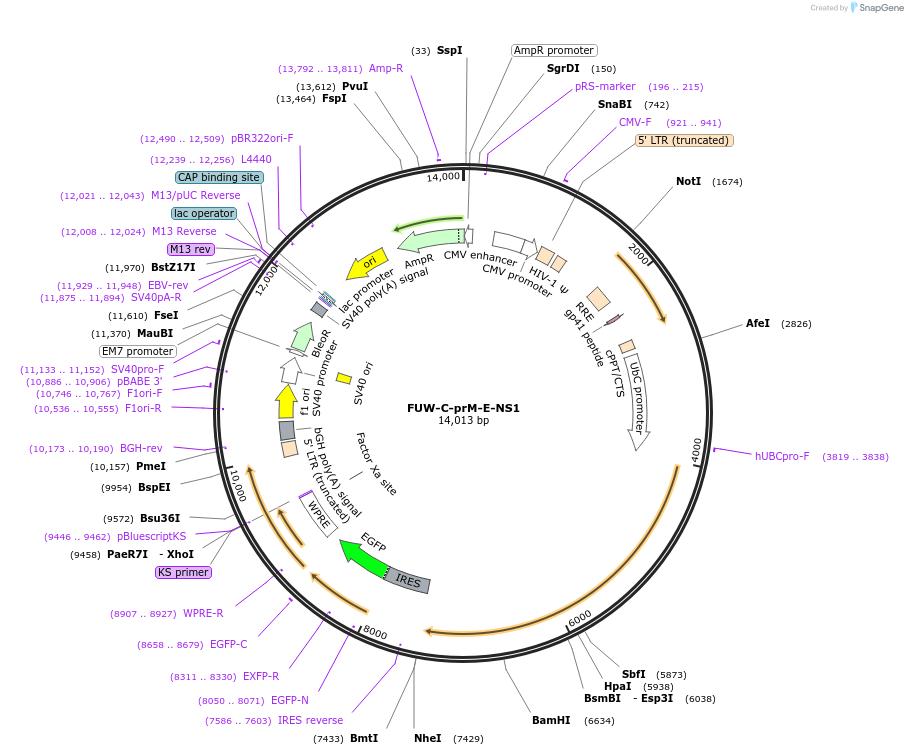

Backbone
-
Vector backboneFUW
- Backbone size w/o insert (bp) 9317
-
Vector typeLentiviral
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameC-prM-E-NS1 and EGFP
-
SpeciesYellow fever virus strain 17D
-
Insert Size (bp)4733
-
Entrez GenePOLY (a.k.a. YFVgp1)
- Promoter human ubiquitin C
-
Tag
/ Fusion Protein
- IRES EGFP (C terminal on backbone)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer tatgcgctcggggttggcgagtg
- 3′ sequencing primer CTCCTCATAAAGAGACAGCAACC (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
FUW-C-prM-E-NS1 was a gift from Wei Xu (Addgene plasmid # 175281 ; http://n2t.net/addgene:175281 ; RRID:Addgene_175281) -
For your References section:
Anterograde transneuronal tracing and genetic control with engineered yellow fever vaccine YFV-17D. Li E, Guo J, Oh SJ, Luo Y, Oliveros HC, Du W, Arano R, Kim Y, Chen YT, Eitson J, Lin DT, Li Y, Roberts T, Schoggins JW, Xu W. Nat Methods. 2021 Nov 25. pii: 10.1038/s41592-021-01319-9. doi: 10.1038/s41592-021-01319-9. 10.1038/s41592-021-01319-9 PubMed 34824475
