Halo-WIPI2B C93E
(Plasmid #175030)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 175030 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

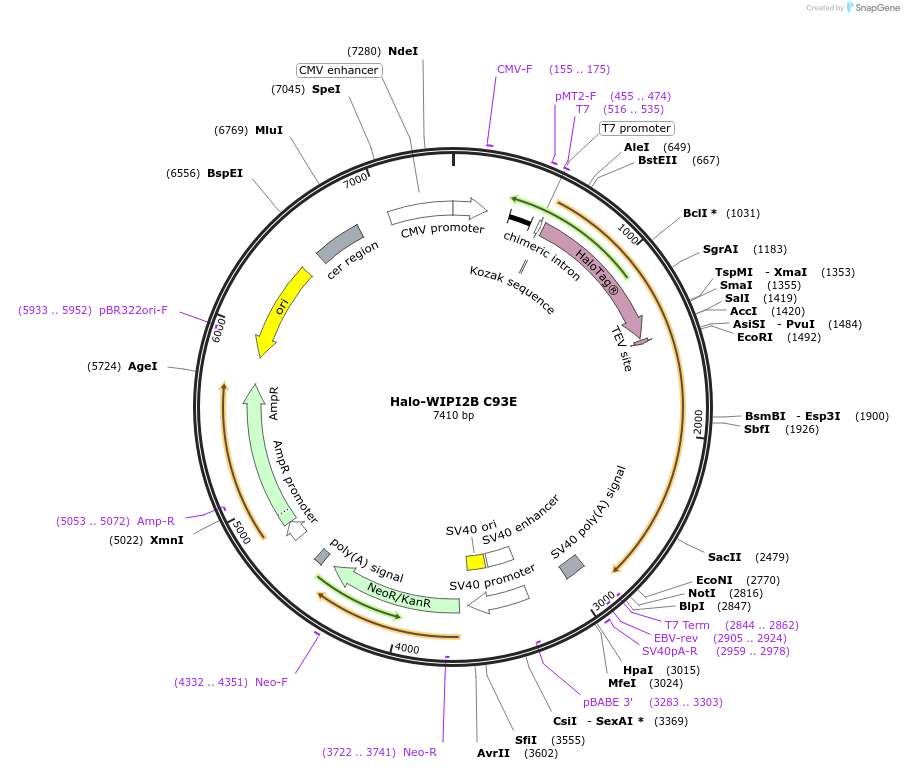

Backbone

  • Vector backbone
    pHTN
  • Backbone manufacturer
    Promega
  • Backbone size w/o insert (bp) 6143
  • Total vector size (bp) 7410
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    WIPI2B (C93E)
  • Species
    H. sapiens (human)
  • Mutation
    Cysteine 93 to Glutamate (TGC to GAG)
  • Entrez Gene
    WIPI2 (a.k.a. ATG18B, Atg21, CGI-50, IDDSSA, WIPI-2)
  • Promoter CMV
  • Tag / Fusion Protein
    • HaloTag

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer cctgatcggcagcgagatcg
    • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    Sharon Tooze, Francis Crick Institute, UK

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Halo-WIPI2B C93E was a gift from Andrea Stavoe (Addgene plasmid # 175030 ; http://n2t.net/addgene:175030 ; RRID:Addgene_175030)

  • For your References section:

    Structural basis for membrane recruitment of ATG16L1 by WIPI2 in autophagy. Strong LM, Chang C, Riley JF, Boecker CA, Flower TG, Buffalo CZ, Ren X, Stavoe AK, Holzbaur EL, Hurley JH. Elife. 2021 Sep 10;10. pii: 70372. doi: 10.7554/eLife.70372. 10.7554/eLife.70372 PubMed 34505572
