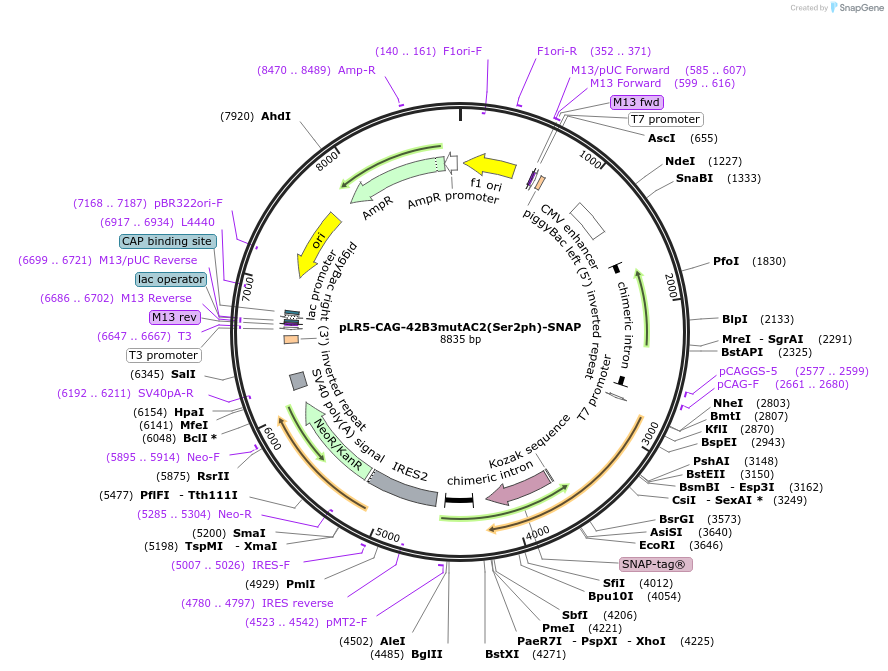

pLR5-CAG-42B3mutAC2(Ser2ph)-SNAP
(Plasmid #174876)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 174876 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pPB-LR5
  • Total vector size (bp) 8835
  • Vector type
    Mammalian Expression ; piggyBac vector
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    RNAPII Ser2ph mintbody-SNAP
  • Species
    Synthetic
  • GenBank ID

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLR5-CAG-42B3mutAC2(Ser2ph)-SNAP was a gift from Hiroshi Ochiai (Addgene plasmid # 174876 ; http://n2t.net/addgene:174876 ; RRID:Addgene_174876)
  • For your References section:

    STREAMING-tag system reveals spatiotemporal relationships between transcriptional regulatory factors and transcriptional activity. Ohishi H, Shimada S, Uchino S, Li J, Sato Y, Shintani M, Owada H, Ohkawa Y, Pertsinidis A, Yamamoto T, Kimura H, Ochiai H. Nat Commun. 2022 Dec 20;13(1):7672. doi: 10.1038/s41467-022-35286-2. 10.1038/s41467-022-35286-2 PubMed 36539402
