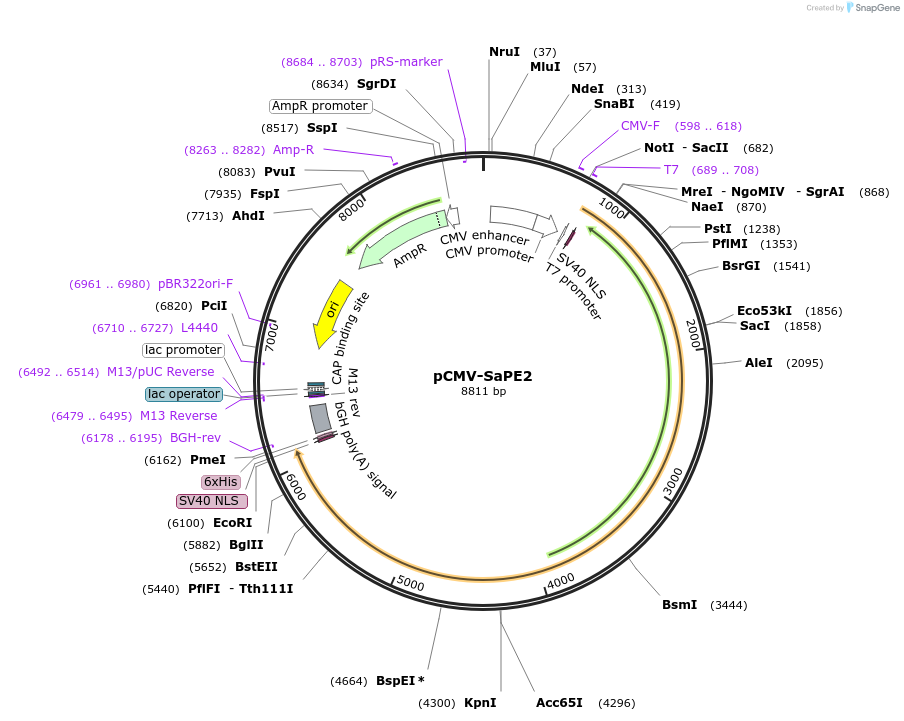

pCMV-SaPE2
(Plasmid #174817)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 174817 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pCMV
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    SaPE2
  • Alt name
    SV40_bpNLS-SaCas9(N580A)-SGGSx2-XTEN16-SGGSx2-MMLV_RT(D200N, T306K, W313F, T330P, L603W)-SV40_bpNLS
  • Species
    Synthetic; SaCas9 is from Staphylococcus aureus; MMLV_RT is from the Moloney murine leukemia virus
  • Insert Size (bp)
    5410
  • Mutation
    Detailed in manuscript
  • Promoter CMV
  • Tags / Fusion Proteins
    • SV40 bpNLS (N terminal on insert)
    • SV40 bpNLS (C terminal on insert)

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer T7-forward
  • 3′ sequencing primer BGH-reverse
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCMV-SaPE2 was a gift from David Liu (Addgene plasmid # 174817 ; http://n2t.net/addgene:174817 ; RRID:Addgene_174817)

  • For your References section:

    Enhanced prime editing systems by manipulating cellular determinants of editing outcomes. Chen PJ, Hussmann JA, Yan J, Knipping F, Ravisankar P, Chen PF, Chen C, Nelson JW, Newby GA, Sahin M, Osborn MJ, Weissman JS, Adamson B, Liu DR. Cell. 2021 Oct 28;184(22):5635-5652.e29. doi: 10.1016/j.cell.2021.09.018. 10.1016/j.cell.2021.09.018 PubMed 34653350
