pKSB- PUb-GFPsv40 GGGG AAGA
(Plasmid
#174536)
-
PurposePUb-GFP fluorescence marker cassette for gene knock-in in mosquitoes
-
Depositing Lab
-

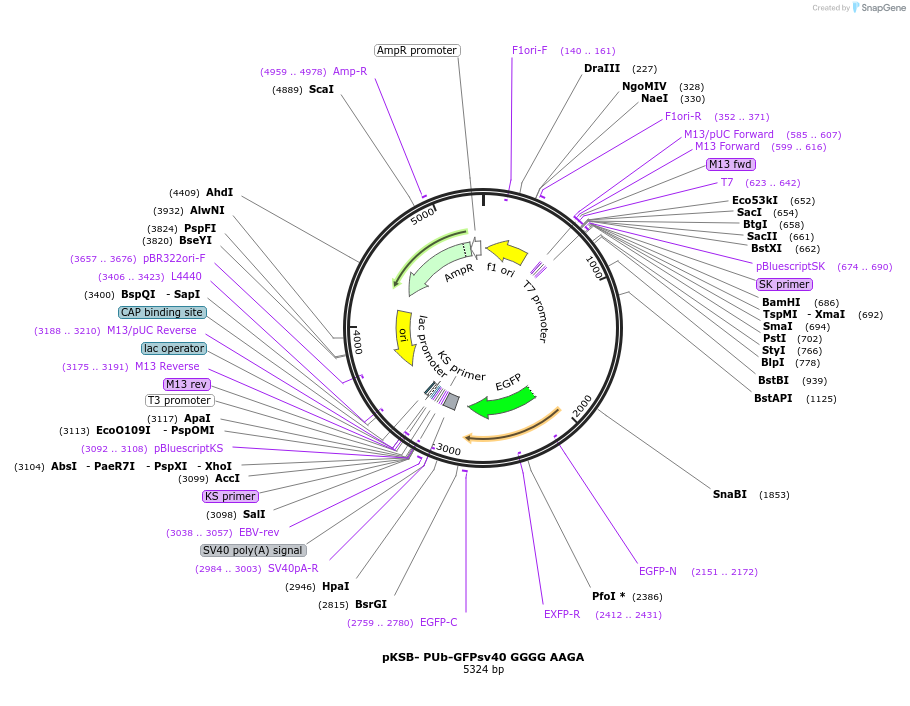

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 174536 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepKSB-
- Backbone size w/o insert (bp) 2961
- Total vector size (bp) 5250
-
Vector typeInsect Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namePUb-GFP-SV40 BsaI cassette
-
SpeciesSynthetic
-
Insert Size (bp)2297
- Promoter Aedes aegypti Polyubiquitin
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer M13F
- 3′ sequencing primer M13R (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pKSB- PUb-GFPsv40 GGGG AAGA was a gift from Eric Marois (Addgene plasmid # 174536 ; http://n2t.net/addgene:174536 ; RRID:Addgene_174536)
