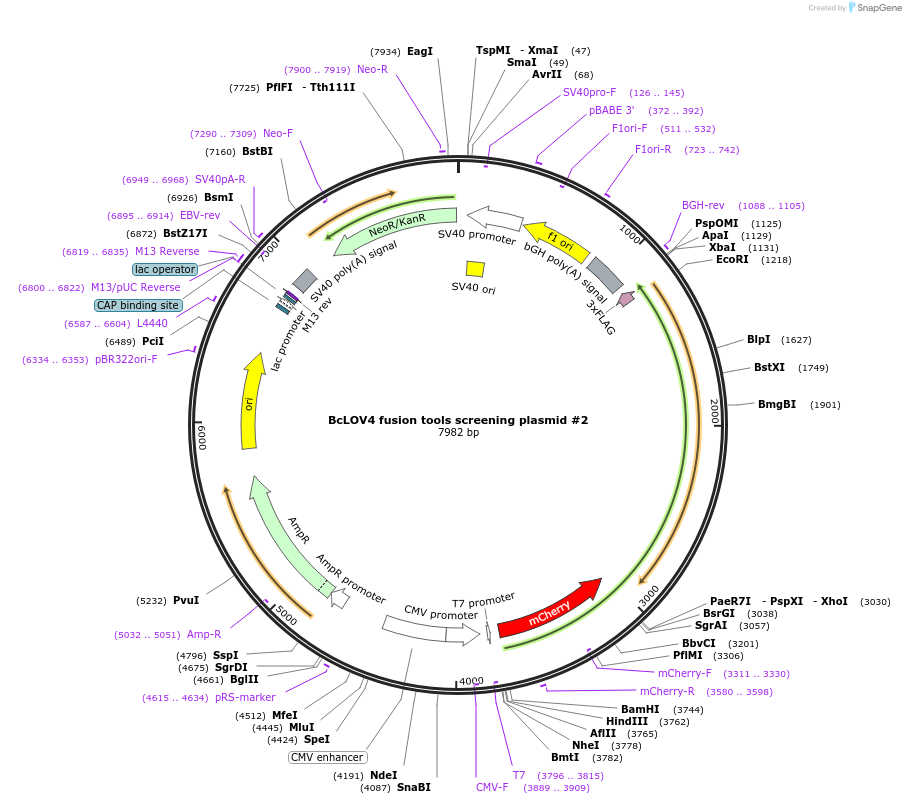

BcLOV4 fusion tools screening plasmid #2
(Plasmid #174512)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 174512 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA3.1
  • Backbone size w/o insert (bp) 5375
  • Total vector size (bp) 7982
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    plasmid B [BamHI]-mCherry-[XhoI]-GGGSx2-BcLOV4-[EcoRI]-GGGS-3xFLAG-STOP
  • Species
    H. sapiens (human); Botrytis cinerea
  • Insert Size (bp)
    2607
  • Promoter CMV
  • Tags / Fusion Proteins
    • mCherry (N terminal on insert)
    • 3xFLAG (C terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
  • 3′ sequencing primer TAGAAGGCACAGTCGAGG
    • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    BcLOV4 fusion tools screening plasmid #2 was a gift from Brian Chow (Addgene plasmid # 174512 ; http://n2t.net/addgene:174512 ; RRID:Addgene_174512)

  • For your References section:

    Designing Single-Component Optogenetic Membrane Recruitment Systems: The Rho-Family GTPase Signaling Toolbox. Berlew EE, Yamada K, Kuznetsov IA, Rand EA, Ochs CC, Jaber Z, Gardner KH, Chow BY. ACS Synth Biol. 2022 Jan 21;11(1):515-521. doi: 10.1021/acssynbio.1c00604. Epub 2022 Jan 3. 10.1021/acssynbio.1c00604 PubMed 34978789
