pJEC625
(Plasmid
#174368)
-
Purpose(Empty Backbone) Golden gate vector for gRNA cloning. Contains BbsI sites for insertion of the gRNA spacer as annealed oligos.
-
Depositing Lab
-

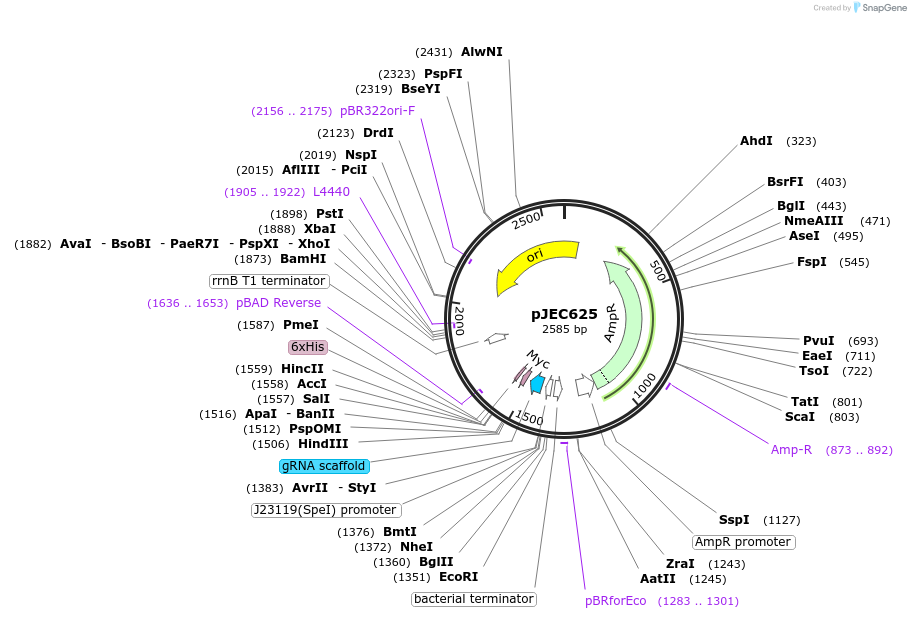

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 174368 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backboneColE1
- Backbone size (bp) 2585
-
Vector typeBacterial Expression, Synthetic Biology
- Promoter J23119
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer tgccacctgacgtctaag (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pJEC625 was a gift from James Chappell (Addgene plasmid # 174368 ; http://n2t.net/addgene:174368 ; RRID:Addgene_174368) -
For your References section:
Rational engineering of a modular bacterial CRISPR-Cas activation platform with expanded target range. Villegas Kcam MC, Tsong AJ, Chappell J. Nucleic Acids Res. 2021 May 7;49(8):4793-4802. doi: 10.1093/nar/gkab211. 10.1093/nar/gkab211 PubMed 33823546
