pIFU001
(Plasmid
#174298)
-
PurposeEncodes the SARS-CoV-2 Spike Receptor Binding Domain (RBD) with the E484K mutation and can be combined with pJS697 (Addgene plasmid # 168778) through homologous recombination
-
Depositing Lab
-

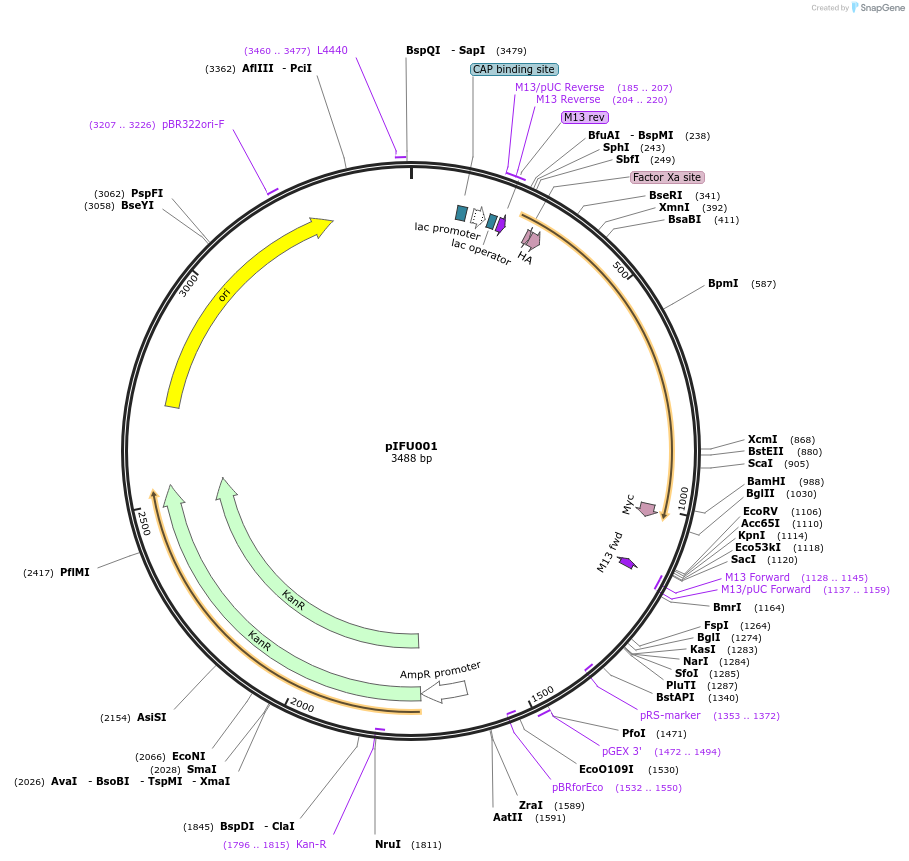

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 174298 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepUC19
-
Vector typeYeast Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameSpike RBD N343Q, E484K
-
SpeciesSevere acute respiratory syndrome coronavirus 2
-
MutationN343Q, E484K
-
Entrez GeneS (a.k.a. GU280_gp02, spike glycoprotein)
-
Tags
/ Fusion Proteins
- cMyc (C terminal on insert)
- HA (N terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer M13R
- 3′ sequencing primer M13F (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pIFU001 was a gift from Timothy Whitehead (Addgene plasmid # 174298 ; http://n2t.net/addgene:174298 ; RRID:Addgene_174298) -
For your References section:
One-shot identification of SARS-CoV-2 S RBD escape mutants using yeast screening. Francino-Urdaniz IM, Steiner PJ, Kirby MB, Zhao F, Haas CM, Barman S, Rhodes ER, Leonard AC, Peng L, Sprenger KG, Jardine JG, Whitehead TA. Cell Rep. 2021 Aug 31;36(9):109627. doi: 10.1016/j.celrep.2021.109627. Epub 2021 Aug 10. 10.1016/j.celrep.2021.109627 PubMed 34416153
