Purpose(Empty Backbone) Gateway entry vector for Degron, N-term, frame C
-
Depositing Labs
-
Publication
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 17416 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepENTR4
-
Backbone manufacturerInvitrogen
- Backbone size (bp) 2602
-
Vector typeMammalian Expression ; Entry vector
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Growth instructionsTOP10F', 37oC
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNone
-
Tag
/ Fusion Protein
- FKBP12DD (L106P) (N terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer ENTRforw
- 3′ sequencing primer ENTRrev (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pENTR4-FKBP12DD N-term C (w385-10) was a gift from Eric Campeau & Paul Kaufman (Addgene plasmid # 17416 ; http://n2t.net/addgene:17416 ; RRID:Addgene_17416) -
For your References section:
A versatile viral system for expression and depletion of proteins in mammalian cells. Campeau E, Ruhl VE, Rodier F, Smith CL, Rahmberg BL, Fuss JO, Campisi J, Yaswen P, Cooper PK, Kaufman PD.. PLoS One. 2009 Aug 6;4(8):e6529. 10.1371/journal.pone.0006529 PubMed 19657394

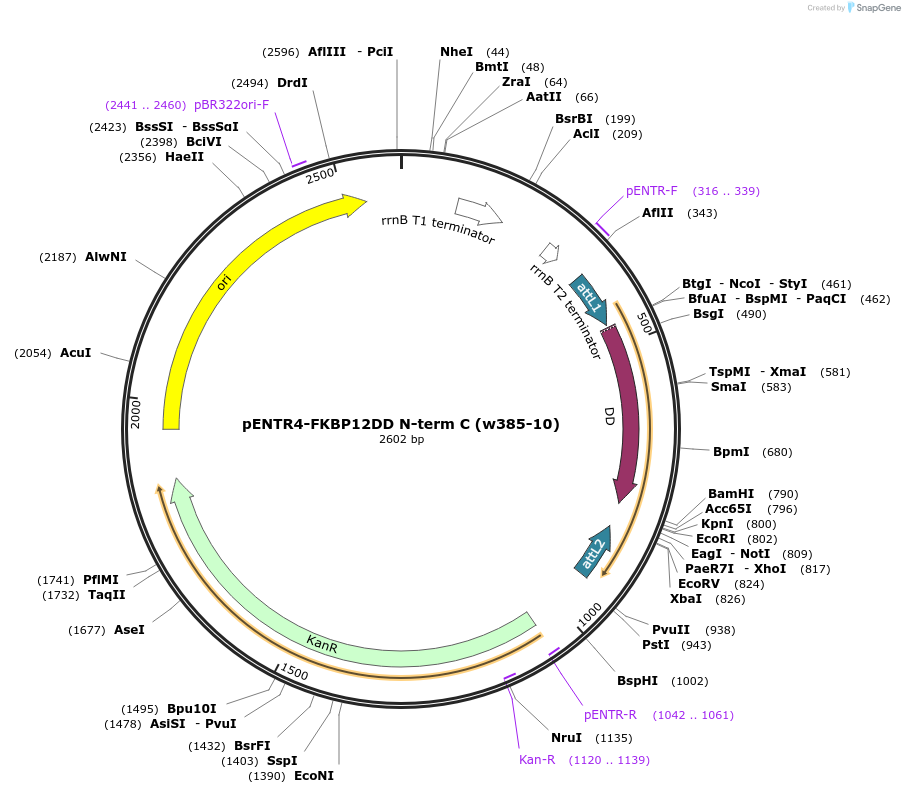

Map uploaded by the depositor.
