pRBC-sfGFP-134/150TAG
(Plasmid
#174077)
-
PurposePlasmid with p15a origin of replication expressing codon optimized superfolder GFP-134/150TAG with C-terminal His6 tag, under T7 promoter
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 174077 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepRBC
-
Backbone manufacturerCustom
- Backbone size w/o insert (bp) 5653
- Total vector size (bp) 6397
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameSuperfolder GFP
-
SpeciesSynthetic
-
Insert Size (bp)744
-
MutationD134TAG + N150TAG
- Promoter T7
-
Tag
/ Fusion Protein
- His-6 (C terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer T7 Forward
- 3′ sequencing primer T7 Reverse (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pRBC-sfGFP-134/150TAG was a gift from Ryan Mehl (Addgene plasmid # 174077 ; http://n2t.net/addgene:174077 ; RRID:Addgene_174077) -
For your References section:
A Highly Versatile Expression System for the Production of Multiply Phosphorylated Proteins. Zhu P, Gafken PR, Mehl RA, Cooley RB. ACS Chem Biol. 2019 Jul 19;14(7):1564-1572. doi: 10.1021/acschembio.9b00307. Epub 2019 Jun 17. 10.1021/acschembio.9b00307 PubMed 31243963

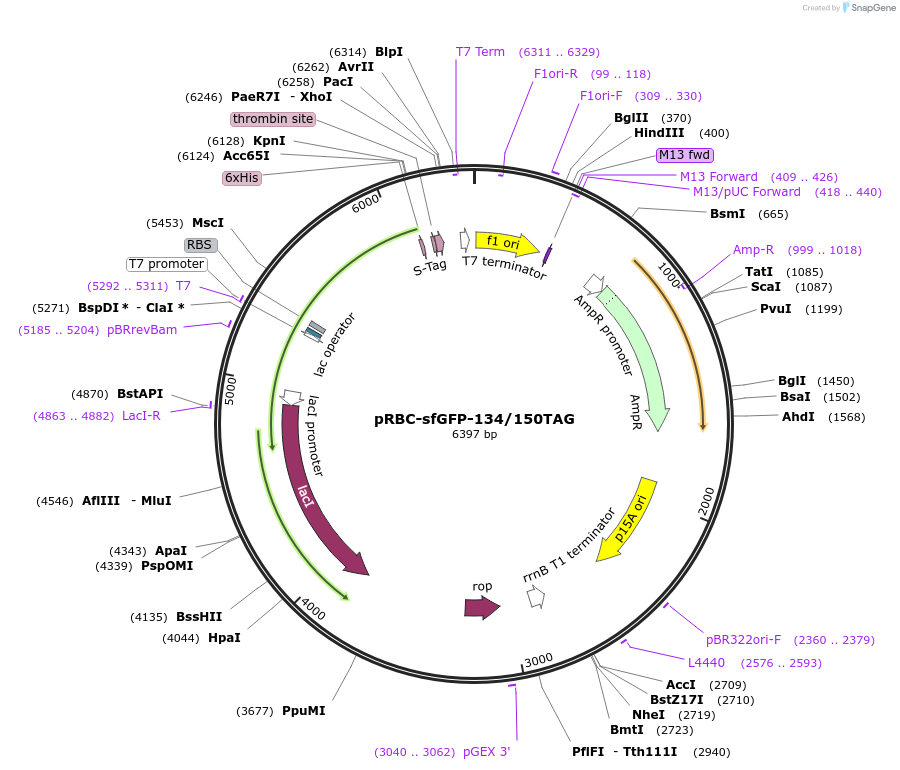

Map uploaded by the depositor.
