pHelper_O
(Plasmid
#173783)
-
PurposeThe 186 helper plasmid necessary for genomic integration of the pIT5_KO plasmid.
-
Depositing Lab
-

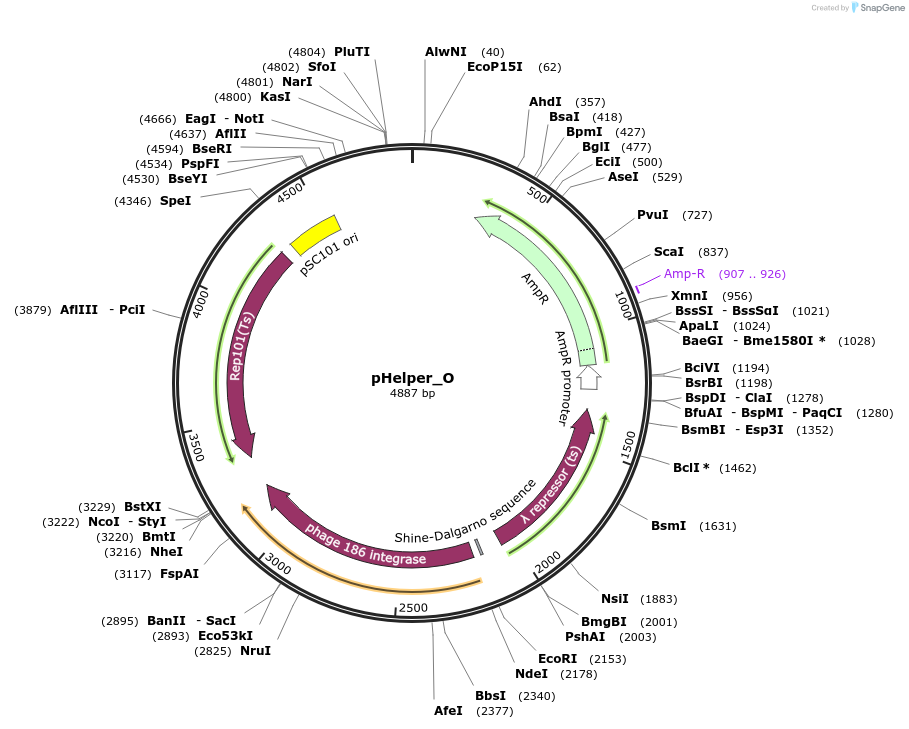

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 173783 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepHelper
-
Backbone manufacturerA portion of this plasmid was derived from a plasmid made by Haldimann and Wanner J. Bact 183, 6384-6393 (2001).
-
Vector typeBacterial Expression, Synthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature30°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert name186 Integrase
-
SpeciesOther
-
MutationE59G - please see depositor comments
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site Unknown (unknown if destroyed)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Depositor confirms E59G in 186 Integrase does not affect plasmid function.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pHelper_O was a gift from Keith Shearwin (Addgene plasmid # 173783 ; http://n2t.net/addgene:173783 ; RRID:Addgene_173783) -
For your References section:
The pIT5 Plasmid Series, an Improved Toolkit for Repeated Genome Integration in E. coli. Hao N, Chen Q, Dodd IB, Shearwin KE. ACS Synth Biol. 2021 Jun 30. doi: 10.1021/acssynbio.1c00215. 10.1021/acssynbio.1c00215 PubMed 34190535
