pIT5_KH_VanR
(Plasmid #173779)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 173779 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pIT5
  • Vector type
    Bacterial Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    EC100D pir+ from Epicentre
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    None

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

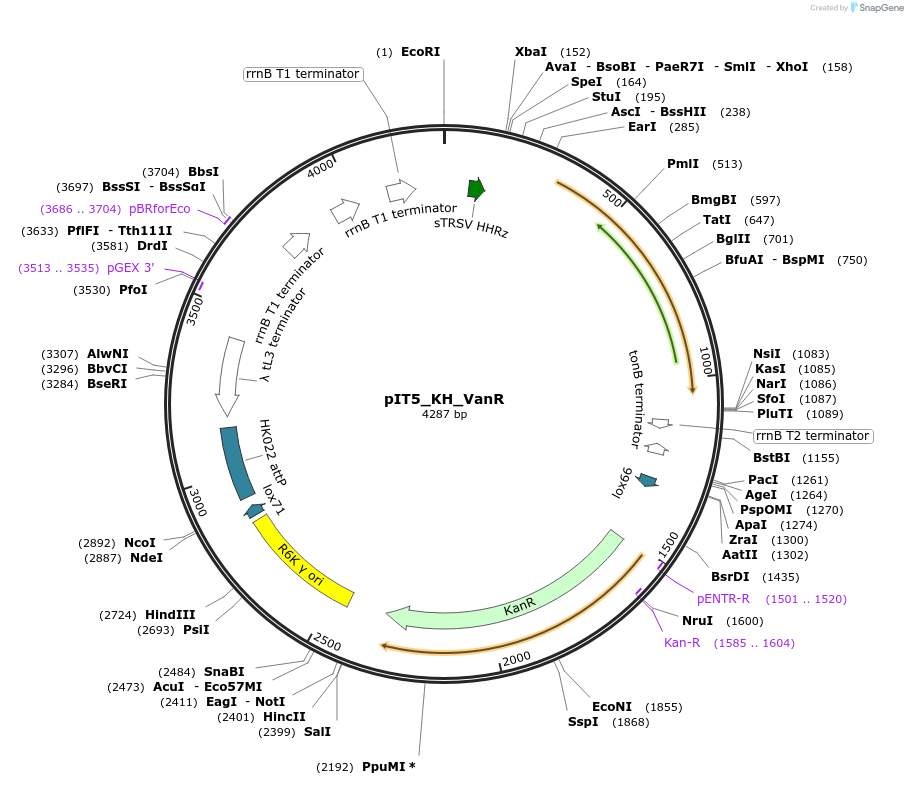

pIT5_KH_VanR is designed to be integrated into the HK022 attachment site, using the HK022 integrase helper plasmid pAH69. This version of plasmid carries VanR repressor, and can be used for inducible gene expression (with Vanillic acid) following integration. The pIT5_KH_VanR need to be propagated in a pir+ strain of E. coli.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pIT5_KH_VanR was a gift from Keith Shearwin (Addgene plasmid # 173779 ; http://n2t.net/addgene:173779 ; RRID:Addgene_173779)
  • For your References section:

    The pIT5 Plasmid Series, an Improved Toolkit for Repeated Genome Integration in E. coli. Hao N, Chen Q, Dodd IB, Shearwin KE. ACS Synth Biol. 2021 Jun 30. doi: 10.1021/acssynbio.1c00215. 10.1021/acssynbio.1c00215 PubMed 34190535
