Addgene

pM214
(Plasmid #173216)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 173216 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

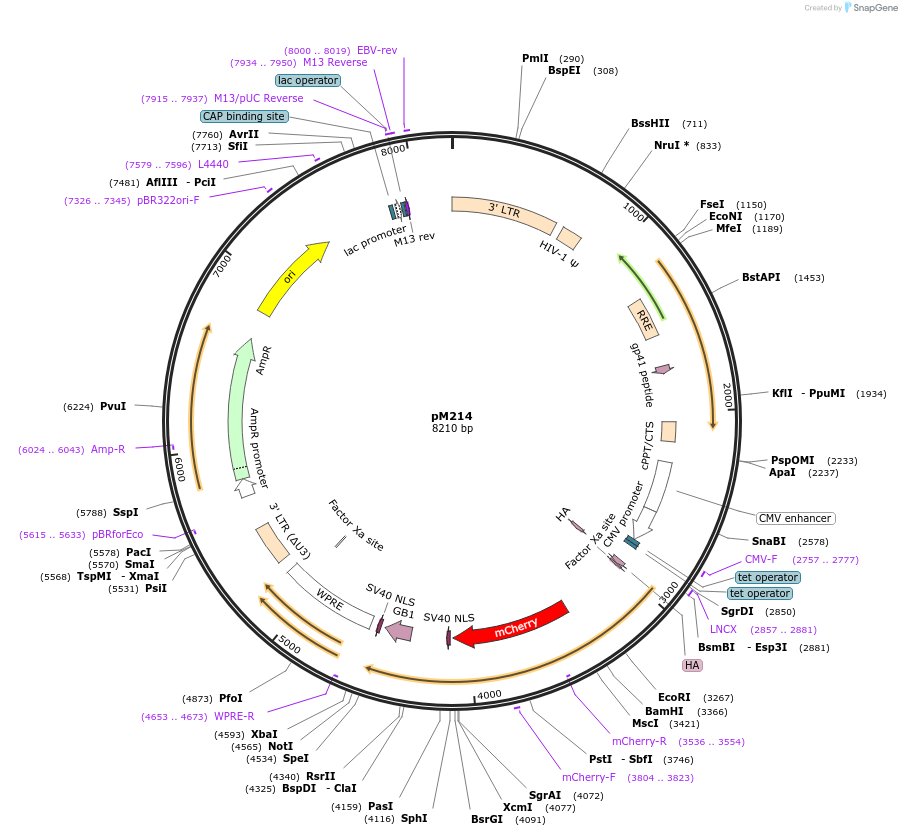

Backbone

  • Vector backbone
    pHAGE-DEST
  • Backbone size w/o insert (bp) 6589
  • Total vector size (bp) 8210
  • Modifications to backbone
    None
  • Vector type
    Mammalian Expression, Lentiviral, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    MCP-mCherry-GFP11-GB1
  • Species
    Synthetic
  • Insert Size (bp)
    1621
  • Promoter CMV
  • Tags / Fusion Proteins
    • HA (N terminal on insert)
    • mCherry (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AgeI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer tgtacggtgggaggtctata
  • 3′ sequencing primer agttaagaataccagtcaatctttcac
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pM214 was a gift from Hajin Kim (Addgene plasmid # 173216 ; http://n2t.net/addgene:173216 ; RRID:Addgene_173216)

  • For your References section:

    Background-suppressed live visualization of genomic loci with an improved CRISPR system based on a split fluorophore. Chaudhary N, Nho SH, Cho H, Gantumur N, Ra JS, Myung K, Kim H. Genome Res. 2020 Sep;30(9):1306-1316. doi: 10.1101/gr.260018.119. Epub 2020 Sep 4. 10.1101/gr.260018.119 PubMed 32887690
