pX330_ATP1A1_G7
(Plasmid #173204)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 173204 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

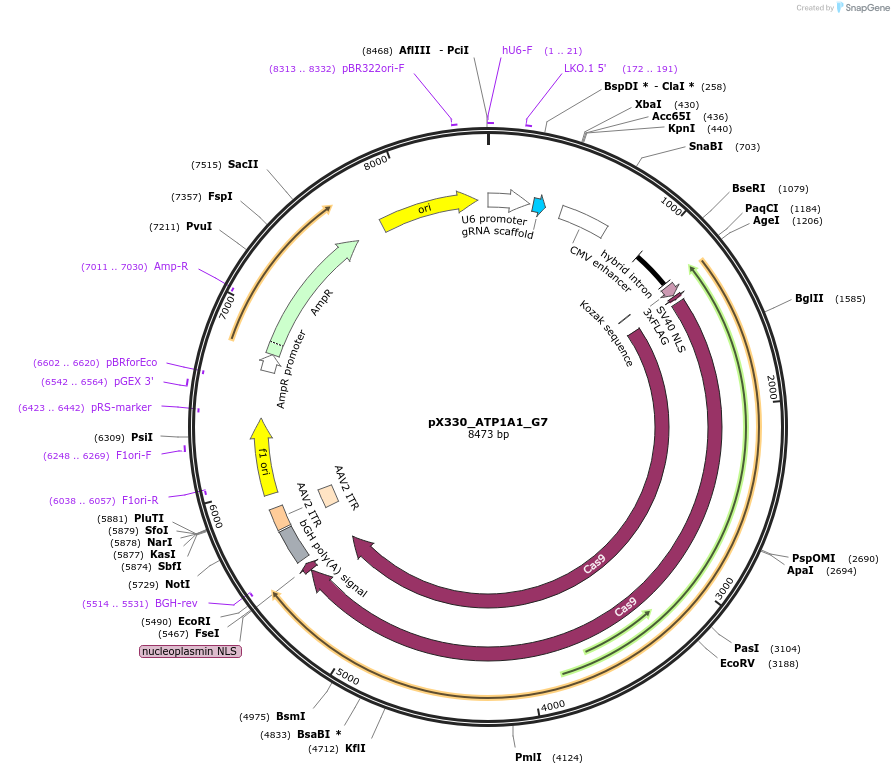

Backbone

  • Vector backbone
    pX330-U6-Chimeric_BB-CBh-hSpCas9
  • Total vector size (bp) 8508
  • Vector type
    Mammalian Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    ATP1A1 G7 sgRNA + SpCas9
  • gRNA/shRNA sequence
    GTCACAGATCGATAGTAGTG
  • Species
    H. sapiens (human)
  • Promoter U6 promoter

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BbsI (destroyed during cloning)
  • 3′ cloning site BbsI (destroyed during cloning)
  • 5′ sequencing primer GAGGGCCTATTTCCCATGATT
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

ATP1A1 G7 sgRNA target ATP1A1 intron 17 and this plasmid can be used to directly target a transgene to the ATP1A1 locus itselft, including the mTOR Signaling Indicator (TOSI) using ATP1A1_T804N_hPGK1_mScarlet-I-TOSI_Donor.
This plasmid is derived from pX330-U6-Chimeric_BB-CBh-hSpCas9. Please visit https://doi.org/10.1101/2021.11.02.464583 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pX330_ATP1A1_G7 was a gift from Yannick Doyon (Addgene plasmid # 173204 ; http://n2t.net/addgene:173204 ; RRID:Addgene_173204)

  • For your References section:

    Marker-free co-selection for successive rounds of prime editing in human cells. Levesque S, Mayorga D, Fiset JP, Goupil C, Duringer A, Loiselle A, Bouchard E, Agudelo D, Doyon Y. Nat Commun. 2022 Oct 7;13(1):5909. doi: 10.1038/s41467-022-33669-z. 10.1038/s41467-022-33669-z PubMed 36207338
