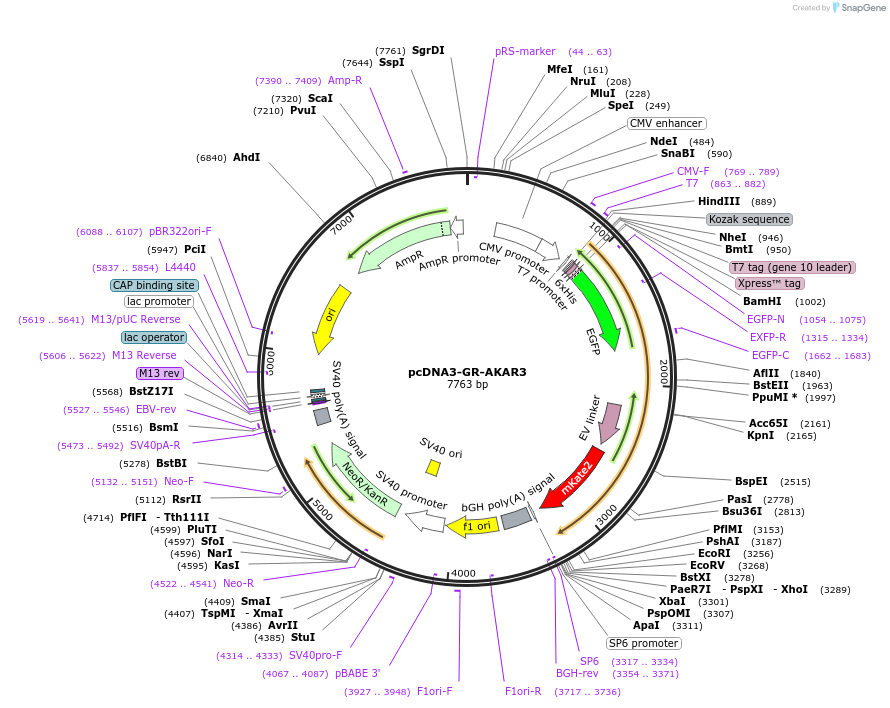

pcDNA3-GR-AKAR3
(Plasmid #173015)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 173015 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA3
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5517
  • Total vector size (bp) 7758
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    GR-AKAR3
  • Insert Size (bp)
    2241
  • Promoter CMV
  • Tags / Fusion Proteins
    • 6xHIS - T7 tag (gene 10 leader) - Xpress (TM) tag (N terminal on backbone)
    • EGFP (N terminal on insert)
    • StagRFP (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer CMV forward
  • 3′ sequencing primer BGH reverse
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3-GR-AKAR3 was a gift from Jin Zhang (Addgene plasmid # 173015 ; http://n2t.net/addgene:173015 ; RRID:Addgene_173015)

  • For your References section:

    A rationally enhanced red fluorescent protein expands the utility of FRET biosensors. Mo GCH, Posner C, Rodriguez EA, Sun T, Zhang J. Nat Commun. 2020 Apr 15;11(1):1848. doi: 10.1038/s41467-020-15687-x. 10.1038/s41467-020-15687-x PubMed 32296061
