2xFKBP-mCh-KDEL
(Plasmid
#173010)
-
PurposeFKBP anchor for retaining DHFR-fused cargoes in the ER in the presence of zapalog. Encodes ER retrieval motif (KDEL) at C-terminus of mCherry. Contains IRES following ORF for cloning cargo.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 173010 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

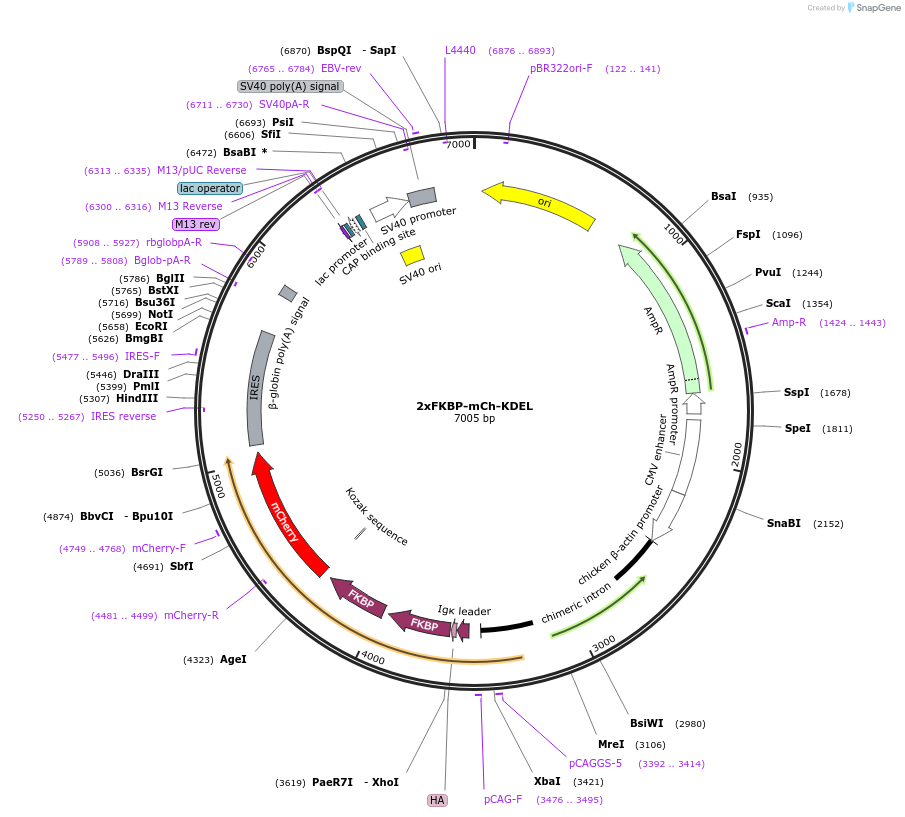

Backbone
-
Vector backbonepCAG
- Backbone size w/o insert (bp) 5478
- Total vector size (bp) 7005
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert name2xFKBP-mCh-KDEL
-
SpeciesSynthetic
-
Insert Size (bp)1527
- Promoter Chicken beta actin (CAG)
-
Tag
/ Fusion Protein
- mCherry (C terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer tagagcctctgctaaccatg
- 3′ sequencing primer acgcacaccggccttat (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://www.biorxiv.org/content/10.1101/2020.09.02.278770v1 for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
2xFKBP-mCh-KDEL was a gift from Matthew Kennedy (Addgene plasmid # 173010 ; http://n2t.net/addgene:173010 ; RRID:Addgene_173010) -
For your References section:
zapERtrap: A light-regulated ER release system reveals unexpected neuronal trafficking pathways. Bourke AM, Schwartz SL, Bowen AB, Kleinjan MS, Winborn CS, Kareemo DJ, Gutnick A, Schwarz TL, Kennedy MJ. J Cell Biol. 2021 Sep 6;220(9). pii: 212461. doi: 10.1083/jcb.202103186. Epub 2021 Jul 9. 10.1083/jcb.202103186 PubMed 34241635
