pRSETA_crGE
(Plasmid
#172927)
-
PurposeCrowding FRET sensor with mCerulean3 and mCitrine for E. coli expression. Linker comprises 2 helices and 3 GSG domains.
-
Depositing Lab
-

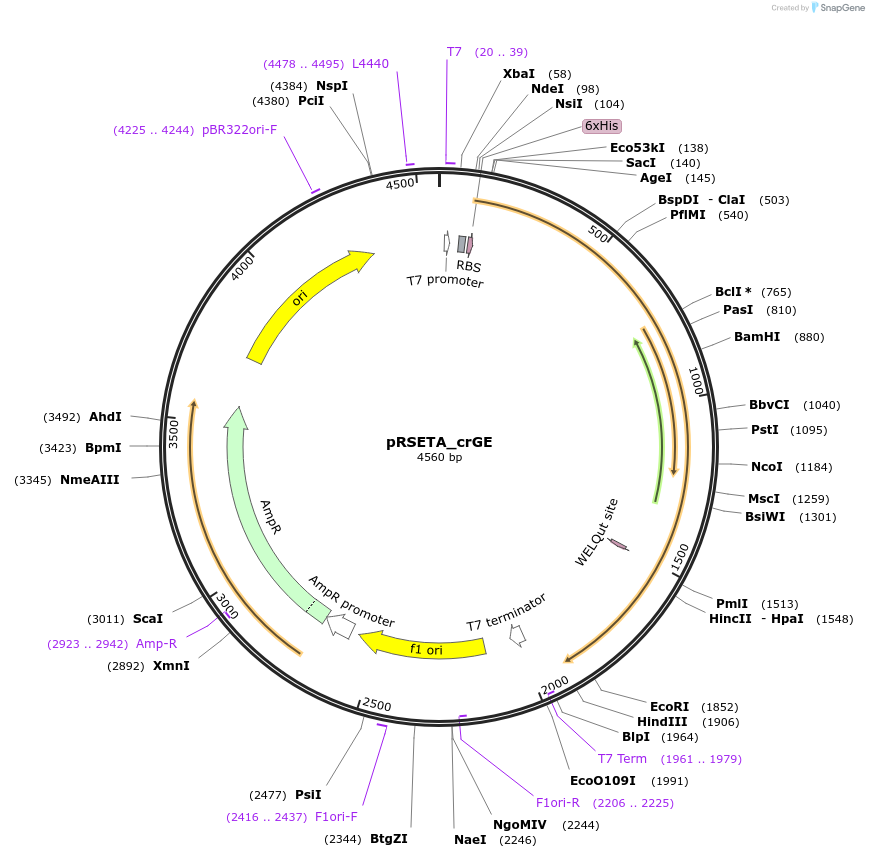

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 172927 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepRSETA
- Backbone size w/o insert (bp) 2754
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameCrowdingSensorGE
-
SpeciesSynthetic
-
Insert Size (bp)1806
- Promoter T7
-
Tag
/ Fusion Protein
- His (N terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NdeI (unknown if destroyed)
- 3′ cloning site HindIII (unknown if destroyed)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pRSETA_crGE was a gift from Arnold Boersma (Addgene plasmid # 172927 ; http://n2t.net/addgene:172927 ; RRID:Addgene_172927) -
For your References section:
A sensor for quantification of macromolecular crowding in living cells. Boersma AJ, Zuhorn IS, Poolman B. Nat Methods. 2015 Mar;12(3):227-9, 1 p following 229. doi: 10.1038/nmeth.3257. Epub 2015 Feb 2. 10.1038/nmeth.3257 PubMed 25643150
