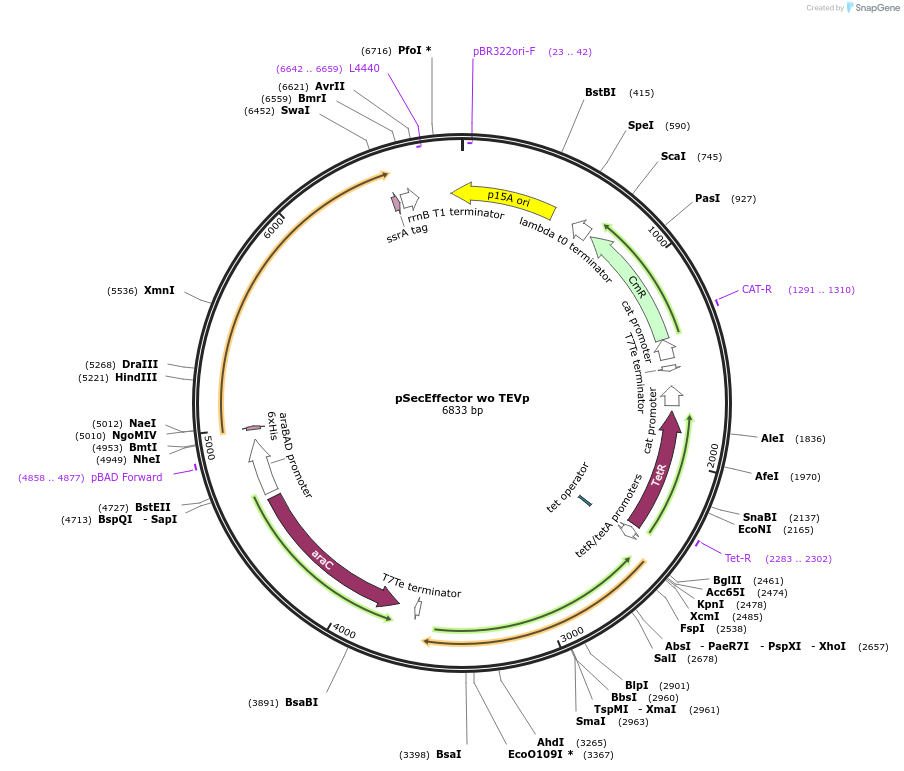

pSecEffector wo TEVp
(Plasmid #172892)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 172892 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pZA
  • Backbone size w/o insert (bp) 1817
  • Total vector size (bp) 6833
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol, 25 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert 1

  • Gene/Insert name
    Bxb1
  • Insert Size (bp)
    1127
  • Promoter nTETO

Cloning Information for Gene/Insert 1

Gene/Insert 2

  • Gene/Insert name
    TP901
  • Insert Size (bp)
    1526
  • Promoter pBAD /AraC

Cloning Information for Gene/Insert 2

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    Bxb1 and TP901 amplified from Addgene plasmid #44456

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSecEffector wo TEVp was a gift from Urartu Seker (Addgene plasmid # 172892 ; http://n2t.net/addgene:172892 ; RRID:Addgene_172892)

  • For your References section:

    A Self-Actuated Cellular Protein Delivery Machine. Ahan RE, Kirpat BM, Saltepe B, Seker UOS. ACS Synth Biol. 2019 Apr 19;8(4):686-696. doi: 10.1021/acssynbio.9b00062. Epub 2019 Mar 12. 10.1021/acssynbio.9b00062 PubMed 30811932
