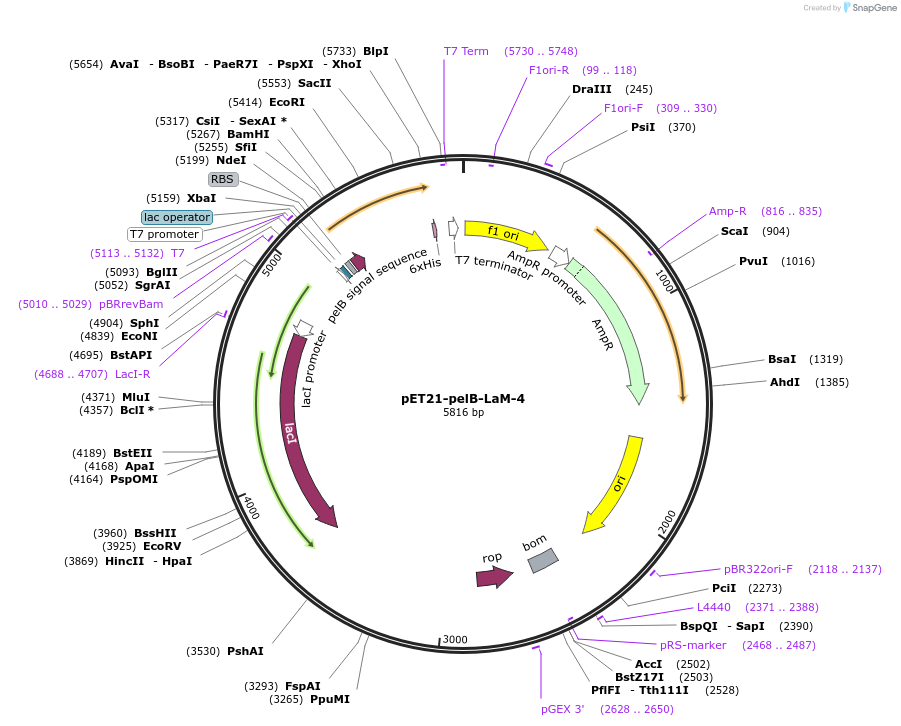

pET21-pelB-LaM-4
(Plasmid #172770)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 172770 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pET21a(+)
  • Backbone manufacturer
    Novagen
  • Backbone size w/o insert (bp) 5443
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    LaM-4
  • Species
    Lama glama
  • Insert Size (bp)
    455
  • Promoter T7
  • Tags / Fusion Proteins
    • pelB leader for periplasmic secretion (N terminal on insert)
    • 6xHIS (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer T7
  • 3′ sequencing primer T7 Term
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Insert codon-optimized for E. coli.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pET21-pelB-LaM-4 was a gift from Michael Rout (Addgene plasmid # 172770 ; http://n2t.net/addgene:172770 ; RRID:Addgene_172770)

  • For your References section:

    A robust pipeline for rapid production of versatile nanobody repertoires. Fridy PC, Li Y, Keegan S, Thompson MK, Nudelman I, Scheid JF, Oeffinger M, Nussenzweig MC, Fenyo D, Chait BT, Rout MP. Nat Methods. 2014 Dec;11(12):1253-60. doi: 10.1038/nmeth.3170. Epub 2014 Nov 2. 10.1038/nmeth.3170 PubMed 25362362
