pMXs-IP- SCAT3.2
(Plasmid
#172497)
-
PurposeSCAT3.2 is fluorescent reporter (FRET probe) for cell survival/apoptosis with Caspase-3 sensitive sequence which can be introduced to mammalian cells by retrovirus vector.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 172497 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepMXs-IP
-
Backbone manufacturerToshi Kitamura at University of Tokyo
- Backbone size w/o insert (bp) 5800
- Total vector size (bp) 7300
-
Vector typeMammalian Expression, Retroviral
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameAmcyan
-
Insert Size (bp)741
- Promoter MLV LTR
-
Tag
/ Fusion Protein
- mVenus (C terminal on insert)
Cloning Information
- Cloning method TOPO Cloning
- 5′ sequencing primer CCACCGCCCTCAAAGTAGACG (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pMXs-IP- SCAT3.2 was a gift from David Scadden (Addgene plasmid # 172497 ; http://n2t.net/addgene:172497 ; RRID:Addgene_172497) -
For your References section:
Imaging dynamic mTORC1 pathway activity in vivo reveals marked shifts that support time-specific inhibitor therapy in AML. Oki T, Mercier F, Kato H, Jung Y, McDonald TO, Spencer JA, Mazzola MC, van Gastel N, Lin CP, Michor F, Kitamura T, Scadden DT. Nat Commun. 2021 Jan 11;12(1):245. doi: 10.1038/s41467-020-20491-8. 10.1038/s41467-020-20491-8 PubMed 33431855

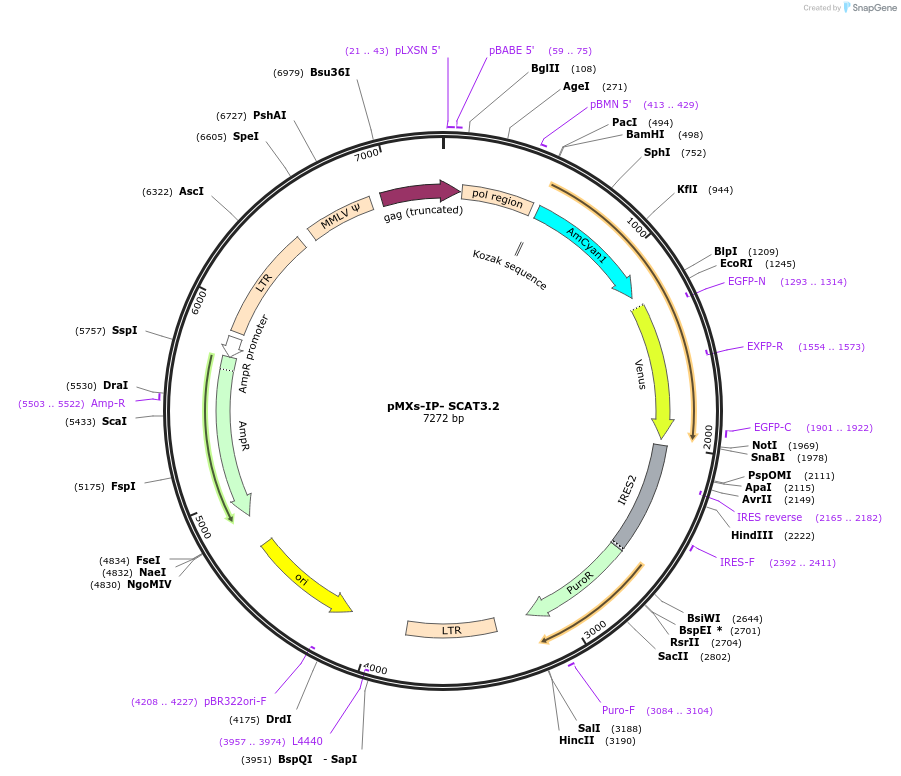

Map uploaded by the depositor.
