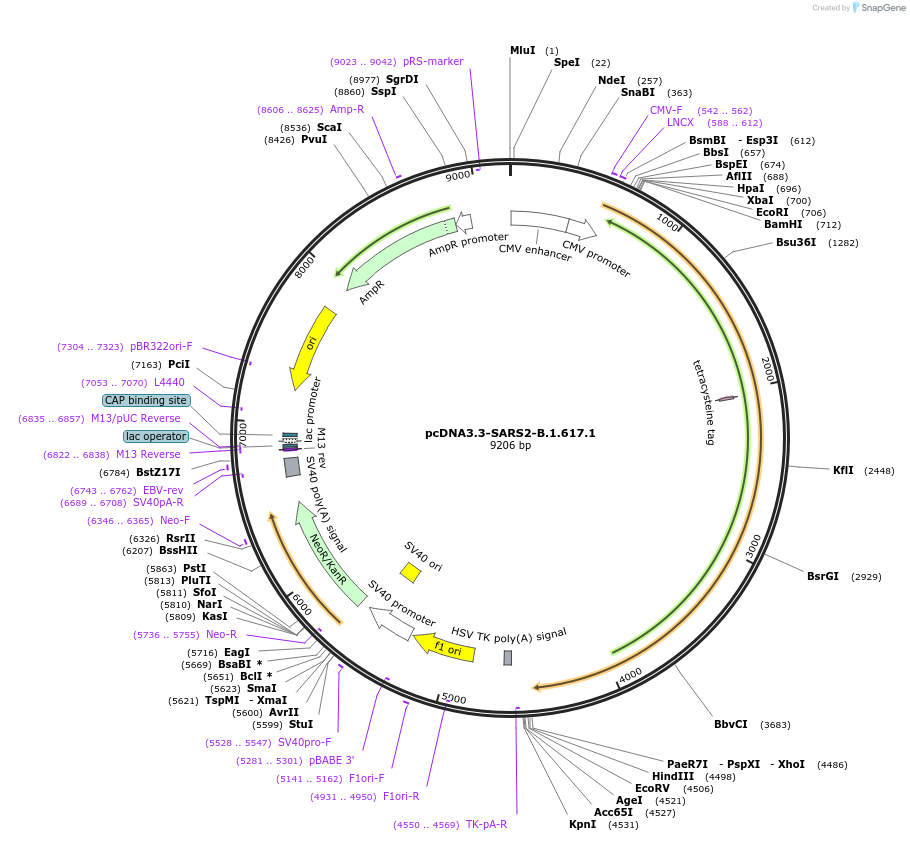

pcDNA3.3-SARS2-B.1.617.1
(Plasmid #172319)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 172319 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA3.3
  • Backbone size w/o insert (bp) 5500
  • Total vector size (bp) 9200
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Spike of B.1.617.1 strain
  • Species
    SARS-CoV-2
  • Insert Size (bp)
    3800
  • Mutation
    G142D, E154K, L452R, E484Q, D614G, P681R, Q1071H, H1101D, c-terminal 18aa deletion
  • GenBank ID
    43740568
  • Entrez Gene
    S (a.k.a. GU280_gp02, spike glycoprotein)
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer TK pA-R
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3.3-SARS2-B.1.617.1 was a gift from David Nemazee (Addgene plasmid # 172319 ; http://n2t.net/addgene:172319 ; RRID:Addgene_172319)

  • For your References section:

    Bispecific antibodies targeting distinct regions of the spike protein potently neutralize SARS-CoV-2 variants of concern. Cho H, Gonzales-Wartz KK, Huang D, Yuan M, Peterson M, Liang J, Beutler N, Torres JL, Cong Y, Postnikova E, Bangaru S, Talana CA, Shi W, Yang ES, Zhang Y, Leung K, Wang L, Peng L, Skinner J, Li S, Wu NC, Liu H, Dacon C, Moyer T, Cohen M, Zhao M, Lee FE, Weinberg RS, Douagi I, Gross R, Schmaljohn C, Pegu A, Mascola JR, Holbrook M, Nemazee D, Rogers TF, Ward AB, Wilson IA, Crompton PD, Tan J. Sci Transl Med. 2021 Oct 20;13(616):eabj5413. doi: 10.1126/scitranslmed.abj5413. Epub 2021 Oct 20. 10.1126/scitranslmed.abj5413 PubMed 34519517
