pNH605-PACE-YFP
(Plasmid #172002)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 172002 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

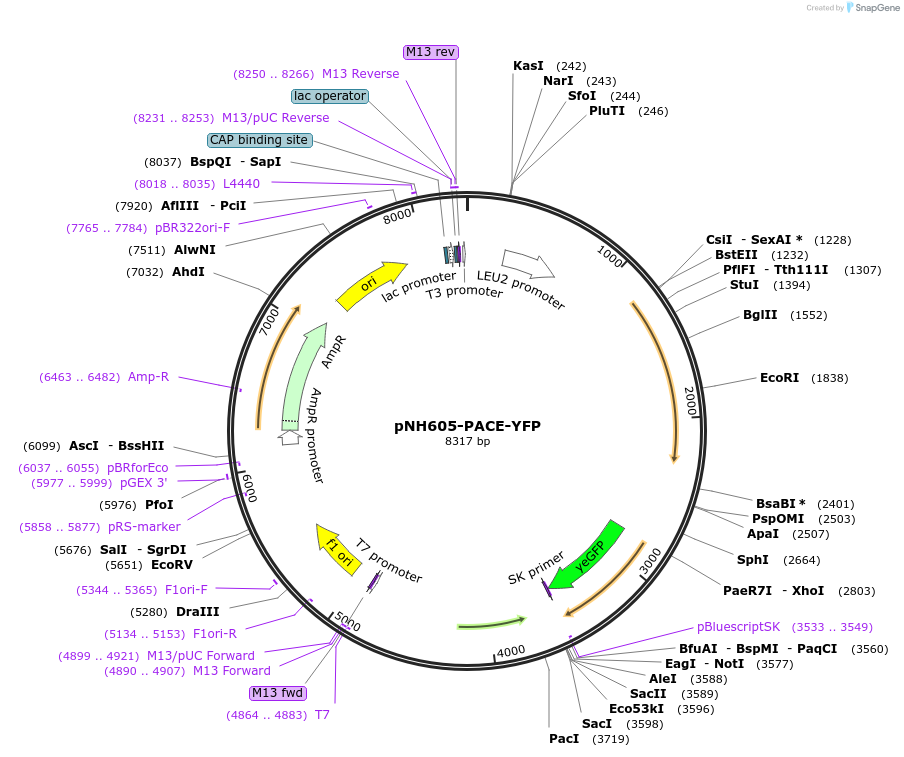

Backbone

  • Vector backbone
    pNH605
  • Vector type
    Yeast Expression ; vector for genomic integration into the yeast genome
  • Selectable markers
    LEU2

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    4xPACE-YFP
  • Species
    Synthetic
  • Promoter CYC1 core promotor with 4 tandem repeats of Rpn4 binding motif (PACE elements)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site PspOMI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer GCAAGCATTTAGTAATGACTATCAAACC
  • 3′ sequencing primer GTATATAATTTAGCTATTTGCTTAGAG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pNH605-PACE-YFP was a gift from Johannes Herrmann (Addgene plasmid # 172002 ; http://n2t.net/addgene:172002 ; RRID:Addgene_172002)

  • For your References section:

    Mitochondrial protein-induced stress triggers a global adaptive transcriptional programme. Boos F, Kramer L, Groh C, Jung F, Haberkant P, Stein F, Wollweber F, Gackstatter A, Zoller E, van der Laan M, Savitski MM, Benes V, Herrmann JM. Nat Cell Biol. 2019 Apr;21(4):442-451. doi: 10.1038/s41556-019-0294-5. Epub 2019 Mar 18. 10.1038/s41556-019-0294-5 PubMed 30886345
