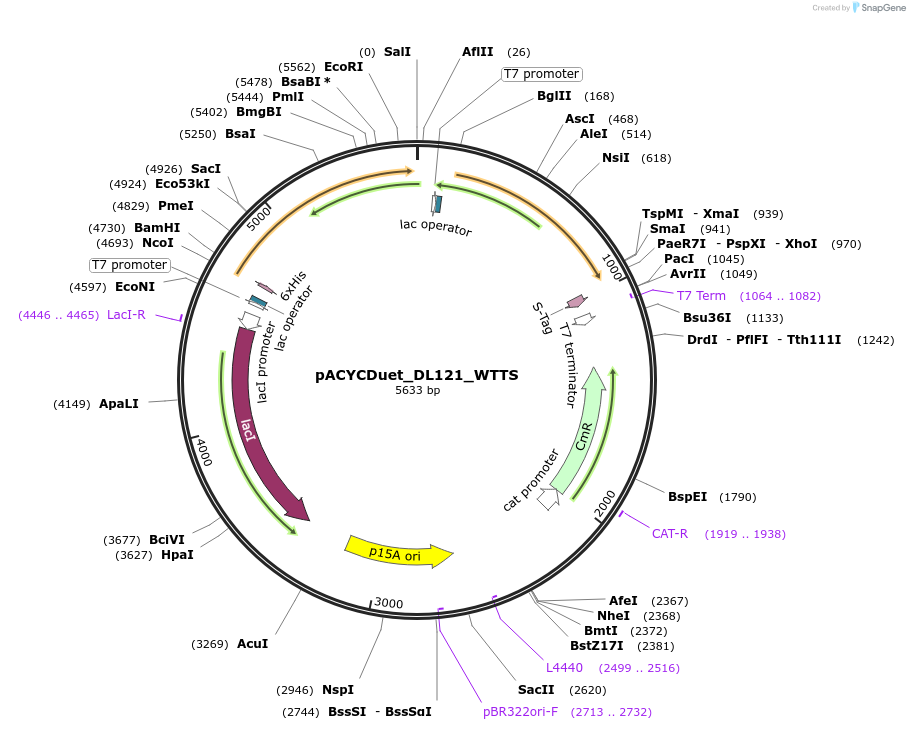

pACYCDuet_DL121_WTTS
(Plasmid
#171954)
-
PurposeSelection vector for chimeric fusion of ecDHFR and asLOV2.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 171954 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepACYCDuet-1
- Backbone size w/o insert (bp) 3907
- Total vector size (bp) 5633
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert 1
-
Gene/Insert nameFusion of ecDHFR and asLOV2 at position 121 of DHFR
-
Alt nameDL121
-
SpeciesEscherichia coli
-
Insert Size (bp)920
- Promoter T7
-
Tag
/ Fusion Protein
- 8-His tag (N terminal on insert)
Cloning Information for Gene/Insert 1
- Cloning method Gateway Cloning
- 5′ sequencing primer T7
- 3′ sequencing primer T7-term (Common Sequencing Primers)
Gene/Insert 2
-
Gene/Insert nameThymidylate Synthase
-
Alt nameTYMS
-
Alt nameThymidylate Synthetase
-
SpeciesE. coli
-
Insert Size (bp)806
- Promoter T7
Cloning Information for Gene/Insert 2
- Cloning method Gateway Cloning
- 5′ sequencing primer T7
- 3′ sequencing primer T7-term (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
A portion of this plasmid was derived from a plasmid made byKimberly Reynolds
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Introduced in Reynolds et al. Cell 2011, PMID: 22196731.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pACYCDuet_DL121_WTTS was a gift from Kimberly Reynolds (Addgene plasmid # 171954 ; http://n2t.net/addgene:171954 ; RRID:Addgene_171954) -
For your References section:
Structurally distributed surface sites tune allosteric regulation. McCormick JW, Russo MA, Thompson S, Blevins A, Reynolds KA. Elife. 2021 Jun 16;10. pii: 68346. doi: 10.7554/eLife.68346. 10.7554/eLife.68346 PubMed 34132193
