pOPINO_H3
(Plasmid
#171927)
-
PurposeBacterial expression of nanobody VHH_H3, which binds to receptor binding domain of the spike protein of SARS-CoV-2
-
Depositing Lab
-
Sequence Information
-
Sequences (1) — Accept Affinity Reagent Sequence Policy
-
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 171927 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 * | |
* Log in to view industry pricing.
Backbone
-
Vector backbonepOPINO
- Backbone size w/o insert (bp) 5564
- Total vector size (bp) 5583
-
Vector typeMammalian Expression, Bacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Growth instructionsPlease use WK6 bacterial strain for expression: 37 C, with induction of protein expression by 1mM IPTG at OD ~ 1.2, and then grown overnight at 20 C.
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameVHH_H3
-
Speciesllama
-
Tag
/ Fusion Protein
- His6 (C terminal on insert)
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer TAA TAC GAC TCA CTA TAG GG (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pOPINO_H3 was a gift from Ray Owens (Addgene plasmid # 171927 ; http://n2t.net/addgene:171927 ; RRID:Addgene_171927) -
For your References section:
A potent SARS-CoV-2 neutralising nanobody shows therapeutic efficacy in the Syrian golden hamster model of COVID-19. Huo J, Mikolajek H, Le Bas A, Clark JJ, Sharma P, Kipar A, Dormon J, Norman C, Weckener M, Clare DK, Harrison PJ, Tree JA, Buttigieg KR, Salguero FJ, Watson R, Knott D, Carnell O, Ngabo D, Elmore MJ, Fotheringham S, Harding A, Moynie L, Ward PN, Dumoux M, Prince T, Hall Y, Hiscox JA, Owen A, James W, Carroll MW, Stewart JP, Naismith JH, Owens RJ. Nat Commun. 2021 Sep 22;12(1):5469. doi: 10.1038/s41467-021-25480-z. 10.1038/s41467-021-25480-z PubMed 34552091

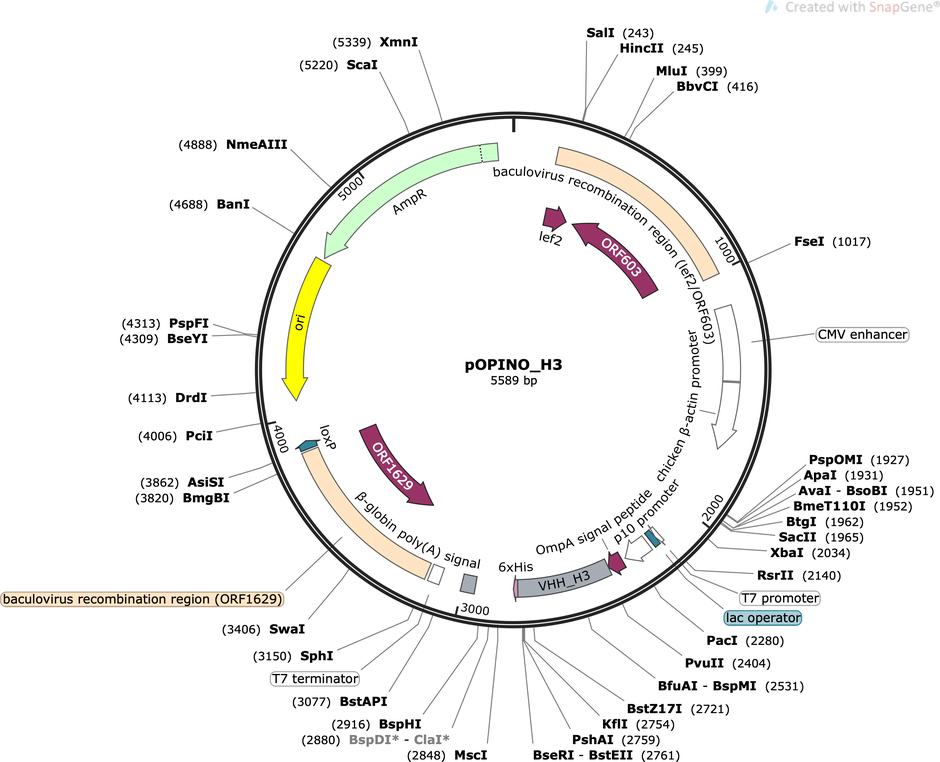

Map uploaded by the depositor.
