1457_pDEST_miniTol2_R4-R2_Cryst_mCherry
(Plasmid
#171796)
-
Purpose(Empty Backbone) pDEST miniTol2-clone for R4-R2 3-component gateway assembly (p5E + pME). Include a mCherry selection marker (Crystallin promoter Lens/Eyes)
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 171796 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbone394-pDestTol2pA2
-
Modifications to backbonemini-Tol2, R4-R2 ATT sites instead of R4-R3, Multiple Cloning Site (MCS) for insertion of fluorescent marker of choice.
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol and Ampicillin, 25 & 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)ccdB Survival
-
Copy numberUnknown
Cloning Information
- Cloning method Restriction Enzyme
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
1457_pDEST_miniTol2_R4-R2_Cryst_mCherry was a gift from Jean Giacomotto (Addgene plasmid # 171796 ; http://n2t.net/addgene:171796 ; RRID:Addgene_171796) -
For your References section:
Optimising the zebrafish Cre/Lox toolbox. Codon improved iCre, new gateway tools, Cre protein and guidelines. Tromp A, Wang H, Hall TE, Mowry B, Giacomotto J. Front Physiol. 2023 Aug 2;14:1221310. doi: 10.3389/fphys.2023.1221310. eCollection 2023. 10.3389/fphys.2023.1221310 PubMed 37601640

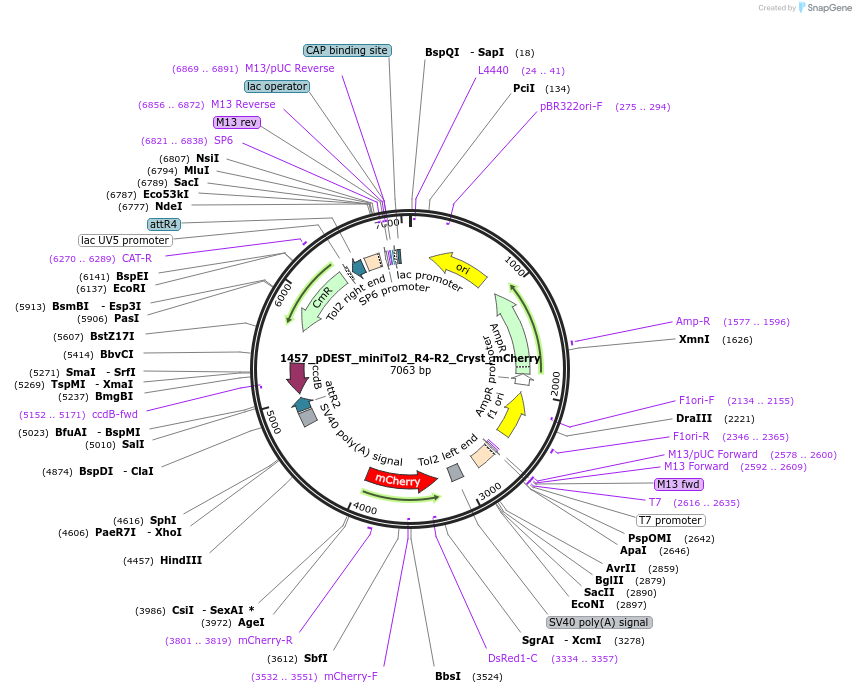

Map uploaded by the depositor.
