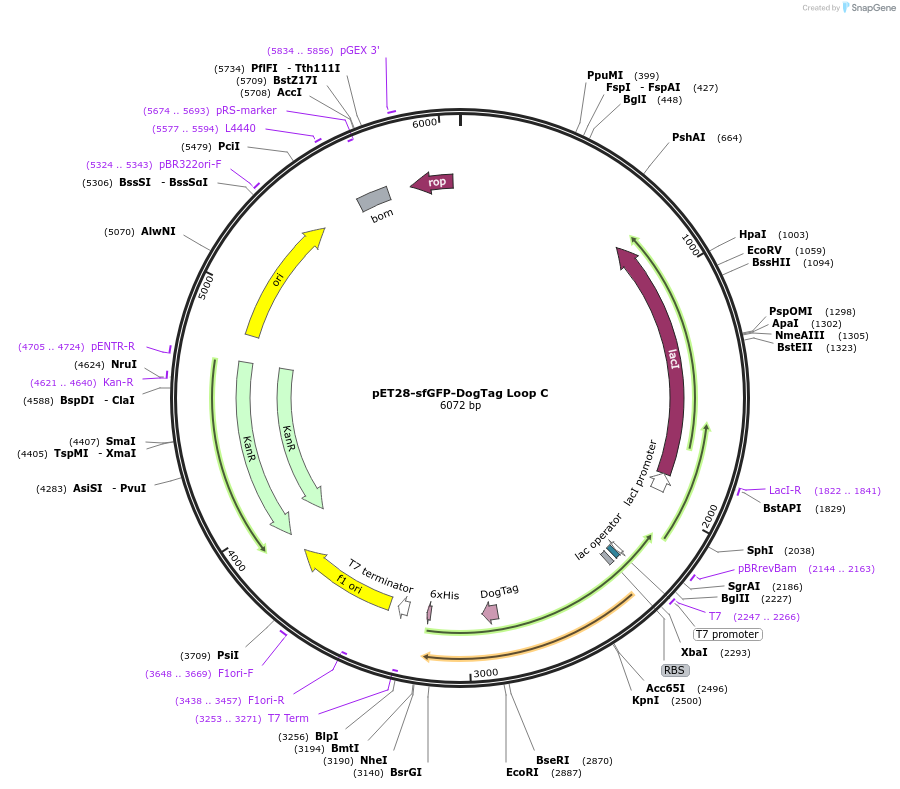

pET28-sfGFP-DogTag Loop C
(Plasmid #171781)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 171781 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pET28a
  • Backbone size w/o insert (bp) 5369
  • Total vector size (bp) 6224
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    sfGFP-DogTag Loop C
  • Species
    Synthetic
  • Insert Size (bp)
    855
  • Mutation
    DogTag and linkers inserted between residues Asp173 and Gly174
  • Promoter T7
  • Tag / Fusion Protein
    • His6 (C terminal on backbone)

Cloning Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pET28-sfGFP-DogTag Loop C was a gift from Mark Howarth (Addgene plasmid # 171781 ; http://n2t.net/addgene:171781 ; RRID:Addgene_171781)

  • For your References section:

    DogCatcher allows loop-friendly protein-protein ligation. Keeble AH, Yadav VK, Ferla MP, Bauer CC, Chuntharpursat-Bon E, Huang J, Bon RS, Howarth M. Cell Chem Biol. 2021 Jul 28. pii: S2451-9456(21)00315-9. doi: 10.1016/j.chembiol.2021.07.005. 10.1016/j.chembiol.2021.07.005 PubMed 34324879
