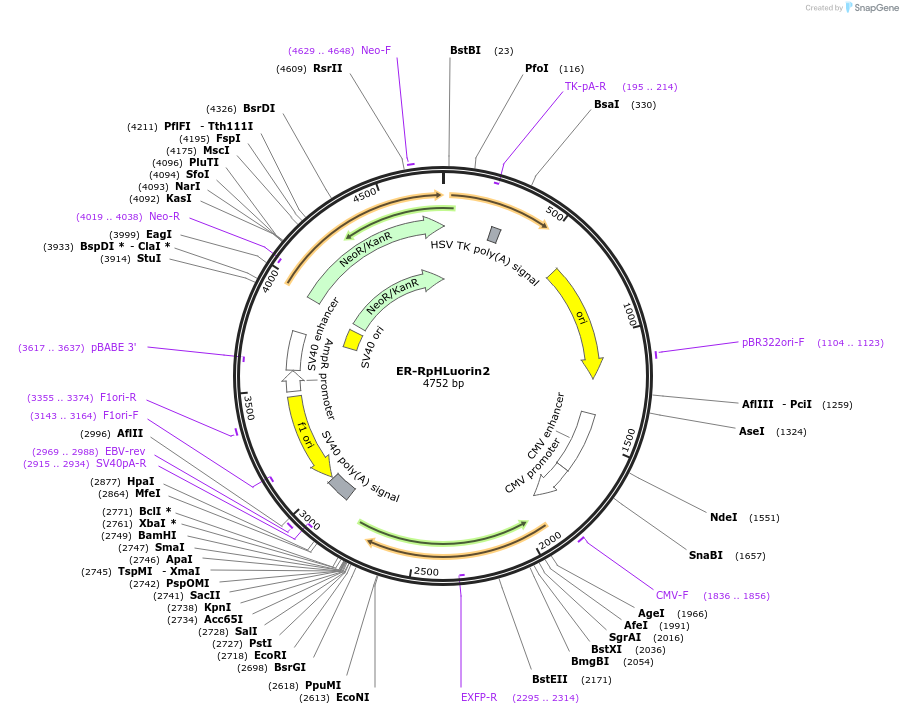

ER-RpHLuorin2
(Plasmid #171717)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 171717 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pRpHLuorin2
  • Backbone size w/o insert (bp) 4730
  • Total vector size (bp) 4766
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Ratiometric pHLuorin2 targeted to ER
  • Species
    Synthetic
  • Promoter CMV
  • Tags / Fusion Proteins
    • KDEL ER-retention signal (C terminal on insert)
    • Signal sequence of human calreticulin (first 18 residues) (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AgeI (not destroyed)
  • 3′ cloning site BsrGI (not destroyed)
  • 5′ sequencing primer pEGFP-cmv
  • 3′ sequencing primer pEGFP-all
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Ratiometric pHLuorin2 sequence synthesized by Genscript, original sequence from https://www.scirp.org/journal/paperinformation.aspx?paperid=5043

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    ER-RpHLuorin2 was a gift from Geert van den Bogaart (Addgene plasmid # 171717 ; http://n2t.net/addgene:171717 ; RRID:Addgene_171717)
  • For your References section:

    Fluorescence Lifetime Imaging of pH along the Secretory Pathway. Linders PTA, Ioannidis M, Ter Beest M, van den Bogaart G. ACS Chem Biol. 2022 Jan 21;17(1):240-251. doi: 10.1021/acschembio.1c00907. Epub 2022 Jan 10. 10.1021/acschembio.1c00907 PubMed 35000377
