pAAV-CMV-IE94-Flex-TM-KA2-Cam-NES-TeVN-AsLOV2-TEVseq-bGH-PA
(Plasmid #171619)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 171619 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

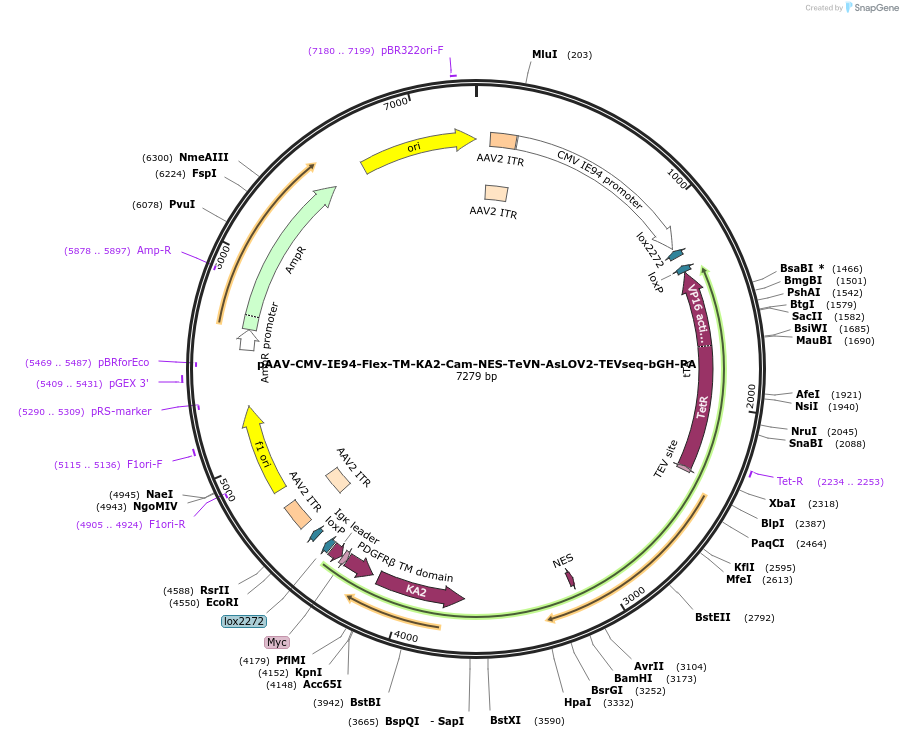

Backbone

  • Vector backbone
    pAAV
  • Total vector size (bp) 7484
  • Vector type
    Mammalian Expression, Mouse Targeting, AAV, Cre/Lox, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    IE94-Flex-TM-KA2-Cam-NES-TeVN-AsLOV2-TEVseq-bGH-PA
  • Species
    Synthetic
  • Insert Size (bp)
    3350
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site N/A (unknown if destroyed)
  • 3′ cloning site N/A (unknown if destroyed)
  • 5′ sequencing primer N/A
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-CMV-IE94-Flex-TM-KA2-Cam-NES-TeVN-AsLOV2-TEVseq-bGH-PA was a gift from Hyungbae Kwon (Addgene plasmid # 171619 ; http://n2t.net/addgene:171619 ; RRID:Addgene_171619)

  • For your References section:

    Tagging active neurons by soma-targeted Cal-Light. Hyun JH, Nagahama K, Namkung H, Mignocchi N, Roh SE, Hannan P, Krussel S, Kwak C, McElroy A, Liu B, Cui M, Lee S, Lee D, Huganir RL, Worley PF, Sawa A, Kwon HB. Nat Commun. 2022 Dec 12;13(1):7692. doi: 10.1038/s41467-022-35406-y. 10.1038/s41467-022-35406-y PubMed 36509775
