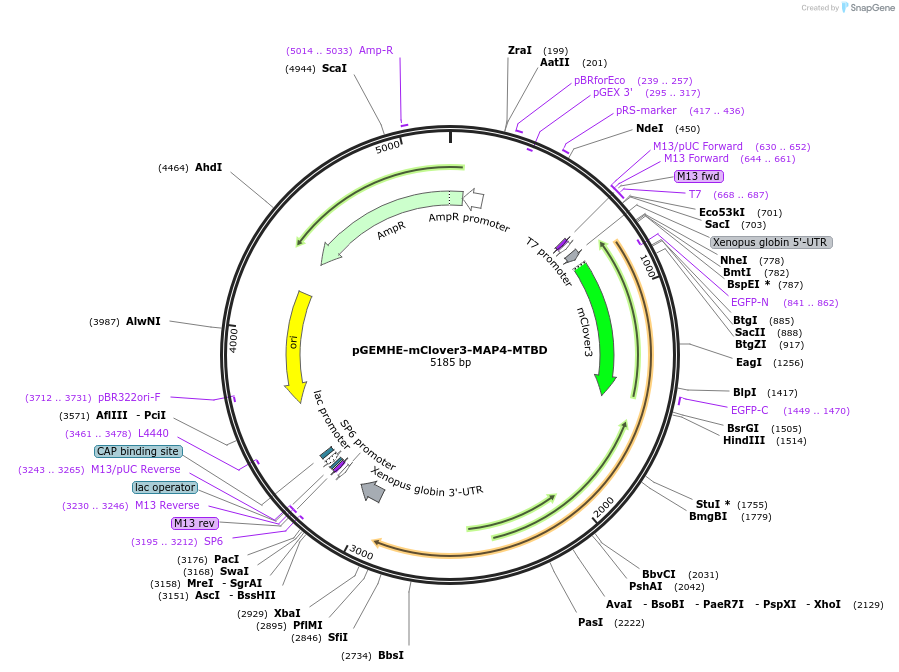

pGEMHE-mClover3-MAP4-MTBD
(Plasmid #171498)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 171498 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pGEHME
  • Vector type
    pGEHME

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    MAP4-MTBD
  • Species
    M. musculus (mouse)
  • Entrez Gene
    Map4 (a.k.a. AA407148, MAP-4, Mtap-4, Mtap4)
  • Promoter T7
  • Tag / Fusion Protein
    • mClover3 (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (not destroyed)
  • 3′ cloning site XbaI (not destroyed)
  • 5′ sequencing primer M13: GTAAAACGACGGCCAGT
  • 3′ sequencing primer GGCTACATTTTGGGGGACAACATTTTGTAAAGT
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Microtubule binding domain of mouse MAP4 (amino acids 658-1126).

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pGEMHE-mClover3-MAP4-MTBD was a gift from Melina Schuh (Addgene plasmid # 171498 ; http://n2t.net/addgene:171498 ; RRID:Addgene_171498)

  • For your References section:

    A liquid-like spindle domain promotes acentrosomal spindle assembly in mammalian oocytes. So C, Seres KB, Steyer AM, Monnich E, Clift D, Pejkovska A, Mobius W, Schuh M. Science. 2019 Jun 28;364(6447). pii: 364/6447/eaat9557. doi: 10.1126/science.aat9557. 10.1126/science.aat9557 PubMed 31249032
