Purpose3rd gen lentiviral backbone for cloning and expression of new shRNA sequences. Uses eGFP for selection. Please see cloning information for suggested restriction sites
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 171213 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |

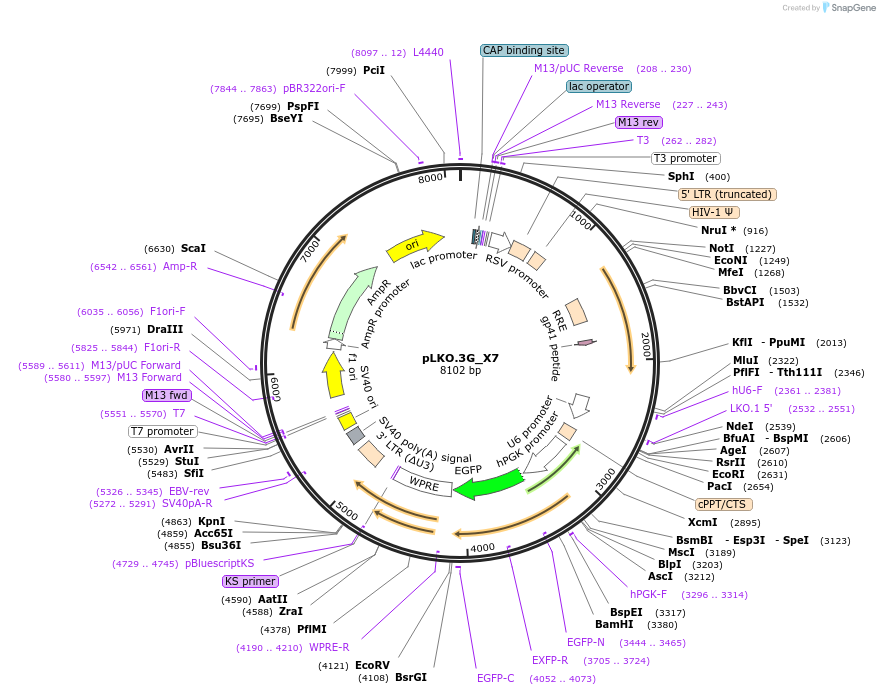

Backbone
-
Vector backbonepLKO.3G
- Backbone size w/o insert (bp) 8102
-
Modifications to backbone3347 C>A mutation destroyed the 2nd AgeI site upstream of eGFP.
-
Vector typeMammalian Expression, Lentiviral, RNAi
-
Selectable markerseGFP
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameN/A; empty backbone
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site AgeI (not destroyed)
- 3′ cloning site EcoRI (not destroyed)
- 5′ sequencing primer LKO.1 5' (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pLKO.3G_X7 was a gift from Jenny Wang (Addgene plasmid # 171213 ; http://n2t.net/addgene:171213 ; RRID:Addgene_171213)
