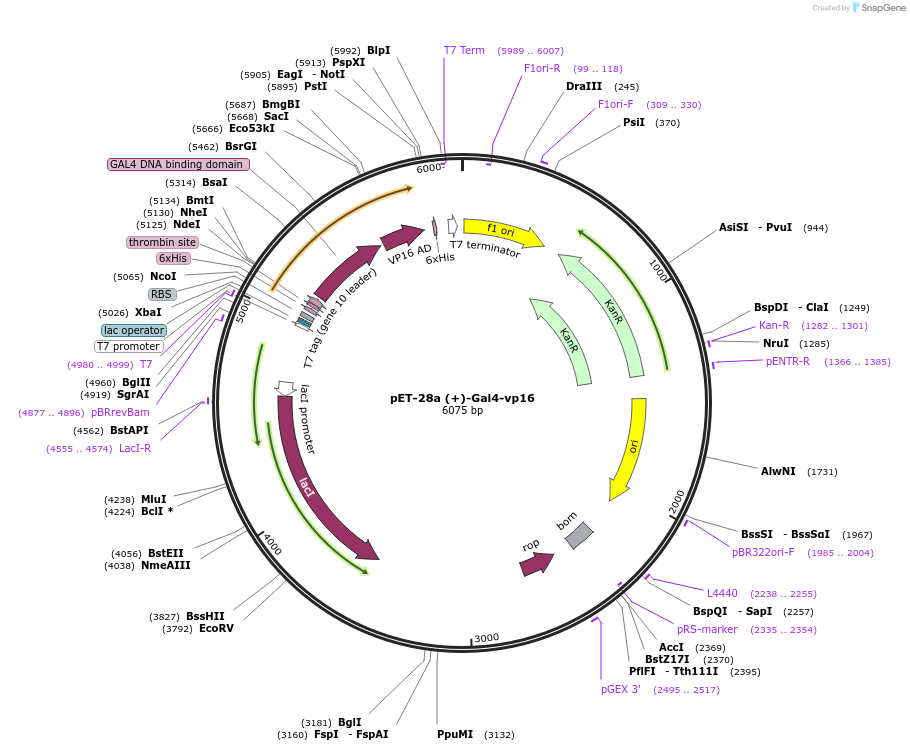

pET-28a (+)-Gal4-vp16
(Plasmid #171075)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 171075 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pET-28a
  • Backbone size w/o insert (bp) 5275
  • Total vector size (bp) 6079
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    Gal4 DBD
  • Species
    S. cerevisiae (budding yeast)
  • Insert Size (bp)
    804
  • Entrez Gene
    NEWENTRY
  • Promoter T7 promoter
  • Tags / Fusion Proteins
    • His (N terminal on backbone)
    • VP16 AD (413-490) (C terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer TAATACGACTCACTATAGGG
  • 3′ sequencing primer GCTAGTTATTGCTCAGCGG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pET-28a (+)-Gal4-vp16 was a gift from Joan Conaway (Addgene plasmid # 171075 ; http://n2t.net/addgene:171075 ; RRID:Addgene_171075)

  • For your References section:

    Elongin functions as a loading factor for Mediator at ATF6alpha-regulated ER stress response genes. He Y, Sato S, Tomomori-Sato C, Chen S, Goode ZH, Conaway JW, Conaway RC. Proc Natl Acad Sci U S A. 2021 Sep 28;118(39):e2108751118. doi: 10.1073/pnas.2108751118. 10.1073/pnas.2108751118 PubMed 34544872
