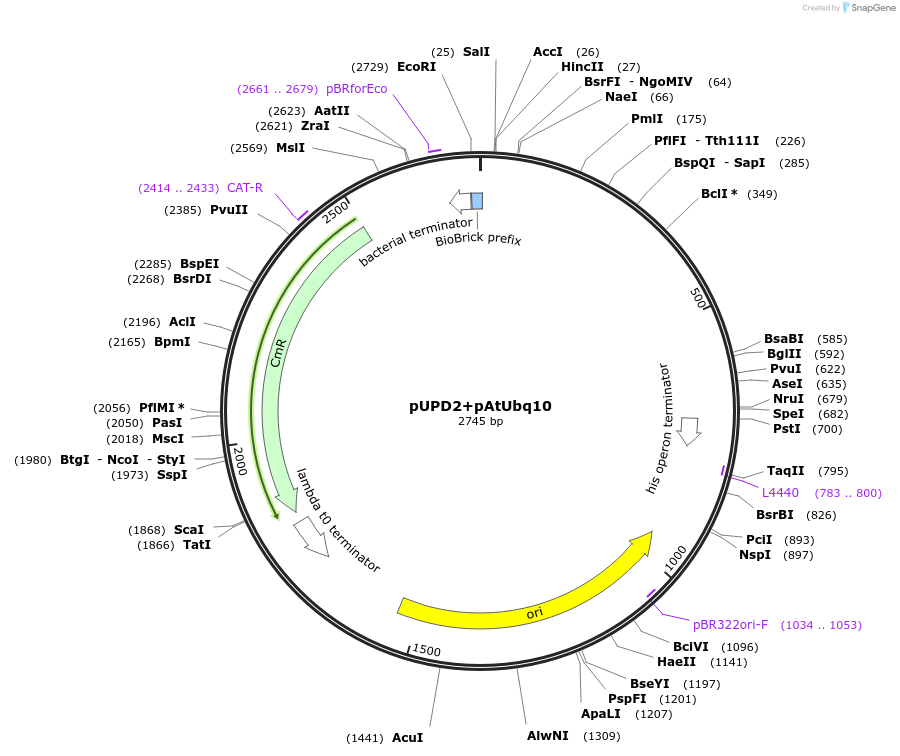

pUPD2+pAtUbq10
(Plasmid #170877)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 170877 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pUPD2
  • Backbone manufacturer
    Diego Orzaez Lab
  • Backbone size w/o insert (bp) 2105
  • Vector type
    Plant Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol, 25 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    pAtUBQ10
  • Alt name
    Arabidopsis thaliana Ubiquitin 10 promoter
  • Species
    A. thaliana (mustard weed)
  • Insert Size (bp)
    636
  • Mutation
    441C>T to remove BbsI restriction site

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Esp3I (destroyed during cloning)
  • 3′ cloning site Esp3I (destroyed during cloning)
  • 5′ sequencing primer ATAGGCGTATCACGAGGCAG
  • 3′ sequencing primer CGAGTCAGTGAGCGAGGAAG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Insert can be excised by BsaI digestion . Please visit https://www.biorxiv.org/content/10.1101/2021.05.26.443018v2 to read the preprint on bioRxiv

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pUPD2+pAtUbq10 was a gift from Markita Landry (Addgene plasmid # 170877 ; http://n2t.net/addgene:170877 ; RRID:Addgene_170877)

  • For your References section:

    A Ratiometric Dual Color Luciferase Reporter for Fast Characterization of Transcriptional Regulatory Elements in Plants. Gonzalez-Grandio E, Demirer GS, Ma W, Brady S, Landry MP. ACS Synth Biol. 2021 Sep 14. doi: 10.1021/acssynbio.1c00248. 10.1021/acssynbio.1c00248 PubMed 34520169
