pUC19_dTAG-KANSL3-targeting
(Plasmid
#170755)
-
PurposeDonor plasmid for BSD-P2A-2xHA-dTAG knock-in into the N-terminus of the mouse Kansl3 locus
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 170755 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

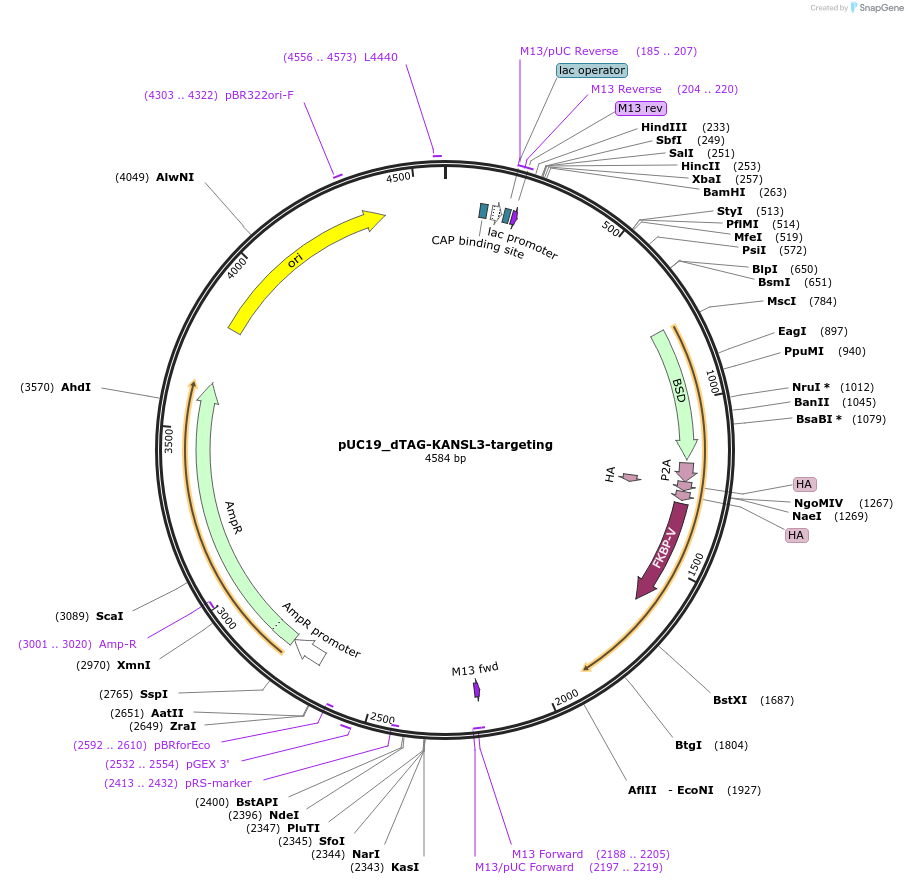

Backbone
-
Vector backbonepUC19
- Backbone size w/o insert (bp) 2686
- Total vector size (bp) 4584
-
Vector typeMouse Targeting
-
Selectable markersBlasticidin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameBSD-P2A-2xHA-dTAG
-
Alt nameBSD-P2A-2xHA-FKBP12(F36V)
-
SpeciesM. musculus (mouse), Synthetic
-
Insert Size (bp)1896
-
MutationPhenylalanine 36 to valine in FKBP12
-
Tag
/ Fusion Protein
- BSD-P2A-2xHA-dTAG
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer M13/pUC19 reverse
- 3′ sequencing primer M13/pUC19 forward (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
A portion of this plasmid was derived from a plasmid made bythe BSD-P2A-2xHA-dTAG cassette was amplified by PCR from pCRIS-PITChv2-BSD-dTAG BRD4 vector (addgene #91792)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pUC19_dTAG-KANSL3-targeting was a gift from Kristian Helin (Addgene plasmid # 170755 ; http://n2t.net/addgene:170755 ; RRID:Addgene_170755) -
For your References section:
Generation of locus-specific degradable tag knock-ins in mouse and human cell lines. Damhofer H, Radzisheuskaya A, Helin K. STAR Protoc. 2021 Jun 2;2(2):100575. doi: 10.1016/j.xpro.2021.100575. eCollection 2021 Jun 18. 10.1016/j.xpro.2021.100575 PubMed 34151298
