Addgene

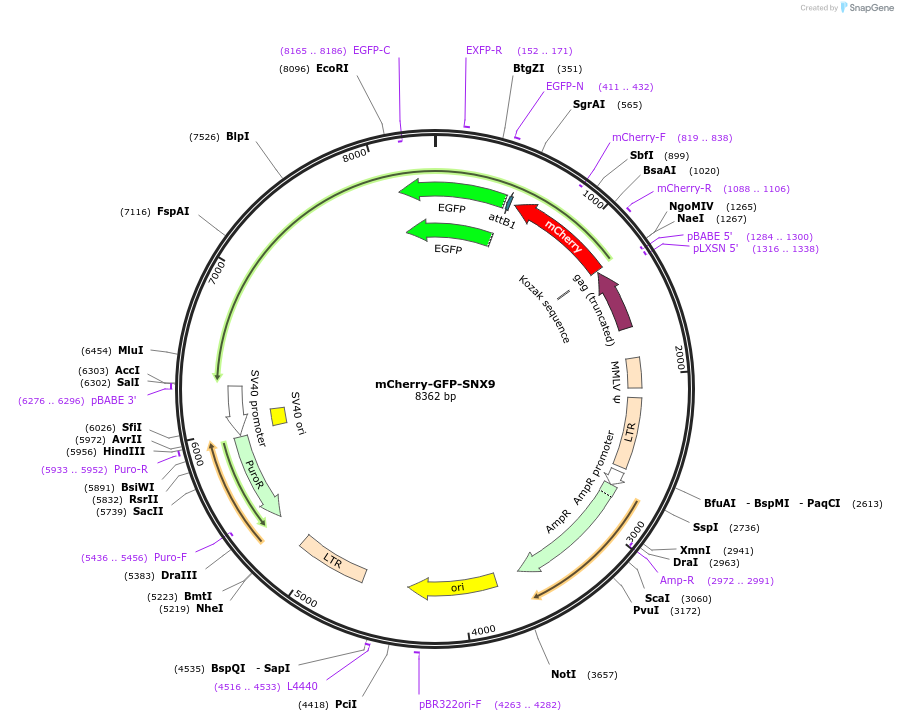

mCherry-GFP-SNX9
(Plasmid #170551)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 170551 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pBabe
  • Total vector size (bp) 8364
  • Vector type
    Mammalian Expression, Retroviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    SNX9
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1790
  • GenBank ID
    NM_016224.5
  • Entrez Gene
    SNX9 (a.k.a. SDP1, SH3PX1, SH3PXD3A, WISP)
  • Tag / Fusion Protein
    • SNX9 in tandem with mCherry and GFP

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (unknown if destroyed)
  • 3′ cloning site SalI (unknown if destroyed)
  • 5′ sequencing primer eGFP
  • 3′ sequencing primer SV40
    • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    mCherry-GFP-SNX9 was a gift from Christina Towers (Addgene plasmid # 170551 ; http://n2t.net/addgene:170551 ; RRID:Addgene_170551)

  • For your References section:

    Mitochondrial-derived vesicles compensate for loss of LC3-mediated mitophagy. Towers CG, Wodetzki DK, Thorburn J, Smith KR, Caino MC, Thorburn A. Dev Cell. 2021 Jul 26;56(14):2029-2042.e5. doi: 10.1016/j.devcel.2021.06.003. Epub 2021 Jun 24. 10.1016/j.devcel.2021.06.003 PubMed 34171288
