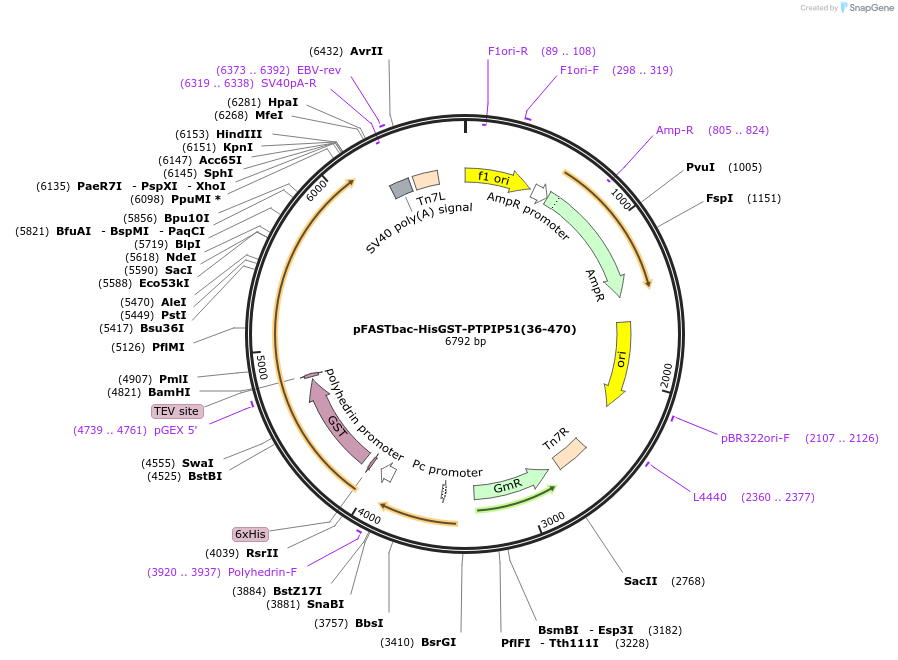

pFASTbac-HisGST-PTPIP51(36-470)
(Plasmid #170531)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 170531 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pFASTBac-HTb
  • Backbone manufacturer
    Thermofisher
  • Backbone size w/o insert (bp) 5536
  • Total vector size (bp) 6841
  • Modifications to backbone
    GST tag - TEV cleavage site is inserted
  • Vector type
    Insect Expression
  • Selectable markers
    Gentamicin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Protein tyrosine phosphatase interacting protein 51
  • Alt name
    PTPIP51
  • Insert Size (bp)
    1305
  • Entrez Gene
    RMDN3 (a.k.a. FAM82A2, FAM82C, RMD-3, RMD3, ptpip51)
  • Promoter Polyhedrin
  • Tags / Fusion Proteins
    • His tag (N terminal on backbone)
    • GST tag (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer pGEX5
  • 3′ sequencing primer SV40 pAreV
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pFASTbac-HisGST-PTPIP51(36-470) was a gift from Byung Il Lee (Addgene plasmid # 170531 ; http://n2t.net/addgene:170531 ; RRID:Addgene_170531)

  • For your References section:

    Phospholipid transfer function of PTPIP51 at mitochondria-associated ER membranes. Yeo HK, Park TH, Kim HY, Jang H, Lee J, Hwang GS, Ryu SE, Park SH, Song HK, Ban HS, Yoon HJ, Lee BI. EMBO Rep. 2021 Jun 4;22(6):e51323. doi: 10.15252/embr.202051323. Epub 2021 May 2. 10.15252/embr.202051323 PubMed 33938112
