Epac-S-H96
(Plasmid #170342)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 170342 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

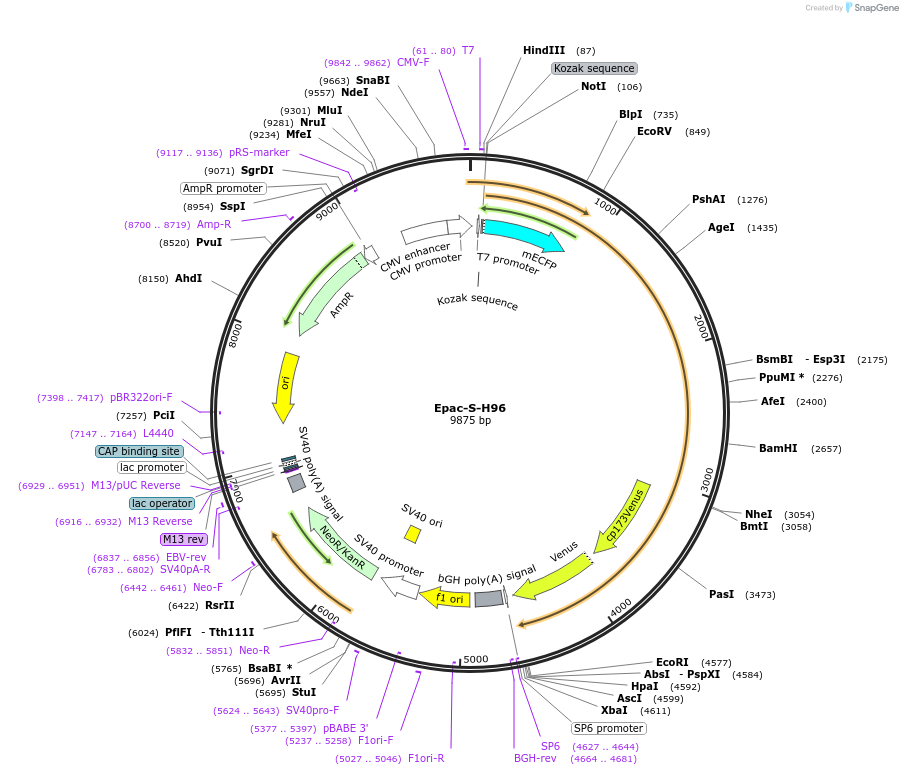

Backbone

  • Vector backbone
    pcDNA3
  • Backbone size w/o insert (bp) 5500
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    CFP(UST)Del_EPACdDEPCD_cp173Ven(ST)_Ven(ST)
  • Species
    H. sapiens (human)
  • Mutation
    Deletion of DEP domain, Catalytically dead T781A & F782A
  • Entrez Gene
    RAPGEF3 (a.k.a. CAMP-GEFI, EPAC, EPAC1, HSU79275, bcm910)
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Unknown (unknown if destroyed)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Epac-S-H96 was a gift from Kees Jalink (Addgene plasmid # 170342 ; http://n2t.net/addgene:170342 ; RRID:Addgene_170342)

  • For your References section:

    A comparison of donor-acceptor pairs for genetically encoded FRET sensors: application to the Epac cAMP sensor as an example. van der Krogt GN, Ogink J, Ponsioen B, Jalink K. PLoS ONE. 2008 . 3(4):e1916. 10.1371/journal.pone.0001916 PubMed 18382687
