XXXXA-pHG165c
(Plasmid
#170110)
-
PurposeConstitutively expressed, chimeric transcription activator comprising the AraC DNA binding domain and the XylS benzoate ligand binding domain.
-
Depositing Lab
-

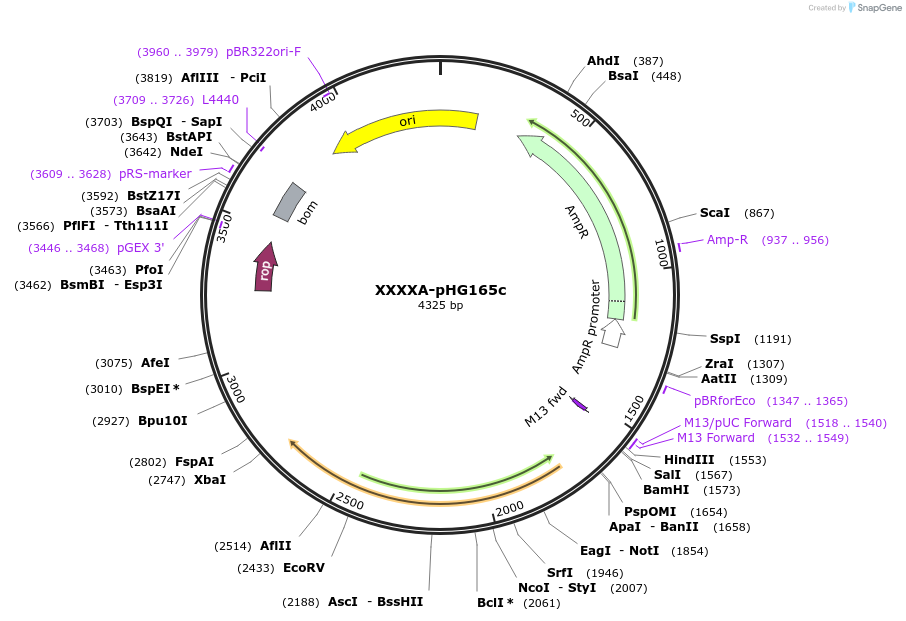

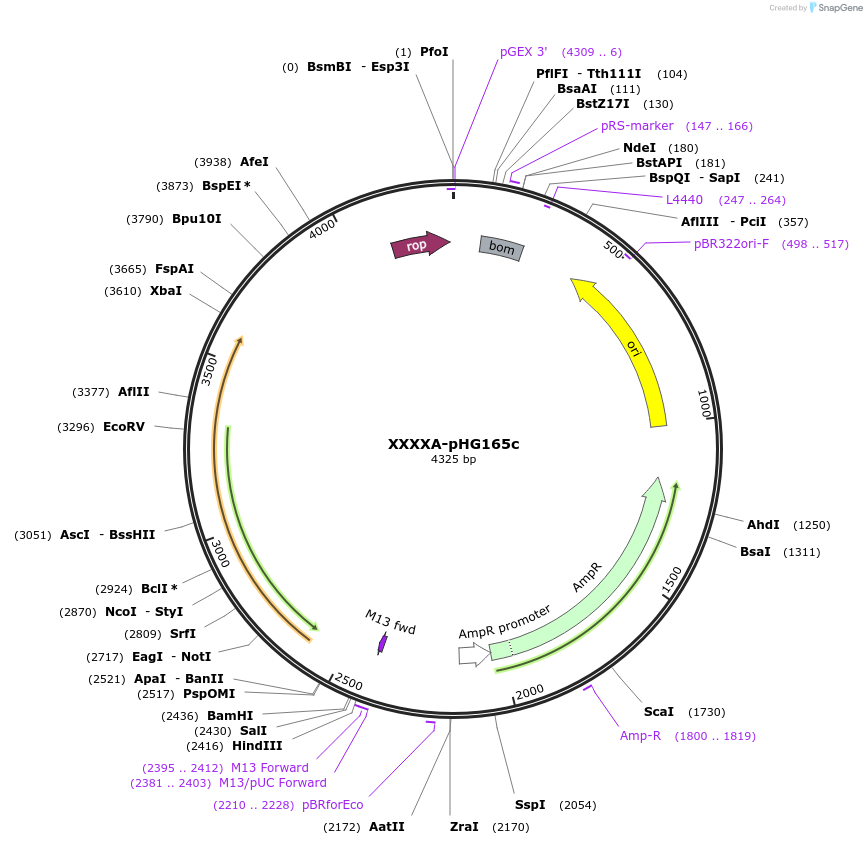

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 170110 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepHG165c
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameXXXXA
-
SpeciesSynthetic
Cloning Information
- Cloning method Unknown
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
XXXXA-pHG165c was a gift from Liskin Swint-Kruse (Addgene plasmid # 170110 ; http://n2t.net/addgene:170110 ; RRID:Addgene_170110) -
For your References section:
Allosteric regulation within the highly interconnected structural scaffold of AraC/XylS homologs tolerates a wide range of amino acid changes. Picard HR, Schwingen KS, Green LM, Shis DL, Egan SM, Bennett MR, Swint-Kruse L. Proteins. 2021 Aug 8. doi: 10.1002/prot.26206. 10.1002/prot.26206 PubMed 34369028
