pGFP-PacI
(Plasmid #170100)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 170100 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

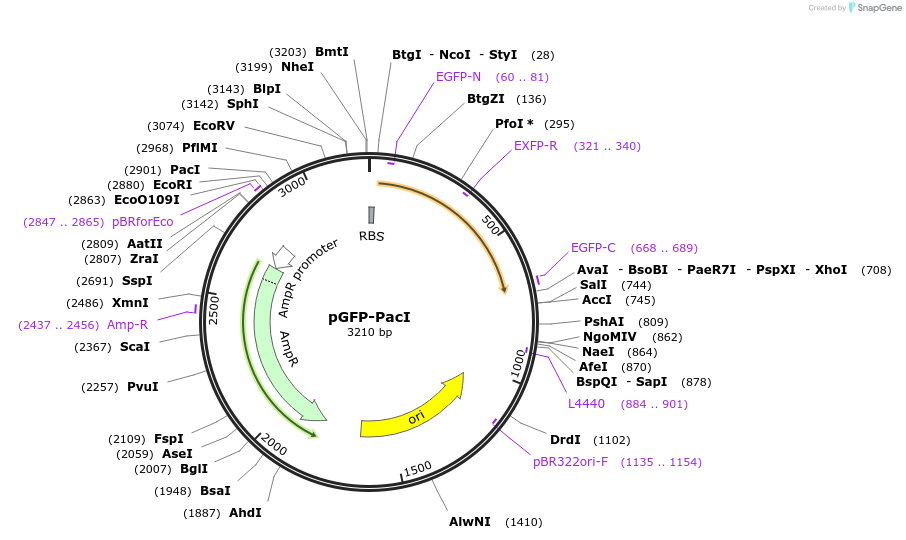

Backbone

  • Vector backbone
    pBEST
  • Backbone size w/o insert (bp) 2400
  • Total vector size (bp) 3210
  • Modifications to backbone
    Insertion of a unique PacI restriction enzyme recognition site upstream of the degfp gene.
  • Vector type
    Bacterial Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    KL740 cI857+
  • Growth instructions
    29°C
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    deGFP
  • Species
    Synthetic
  • Insert Size (bp)
    678
  • Promoter p70a

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pGFP-PacI was a gift from Chase Beisel (Addgene plasmid # 170100 ; http://n2t.net/addgene:170100 ; RRID:Addgene_170100)

  • For your References section:

    A TXTL-Based Assay to Rapidly Identify PAMs for CRISPR-Cas Systems with Multi-Protein Effector Complexes. Wimmer F, Englert F, Beisel CL. Methods Mol Biol. 2022;2433:391-411. doi: 10.1007/978-1-0716-1998-8_24. 10.1007/978-1-0716-1998-8_24 PubMed 34985758
