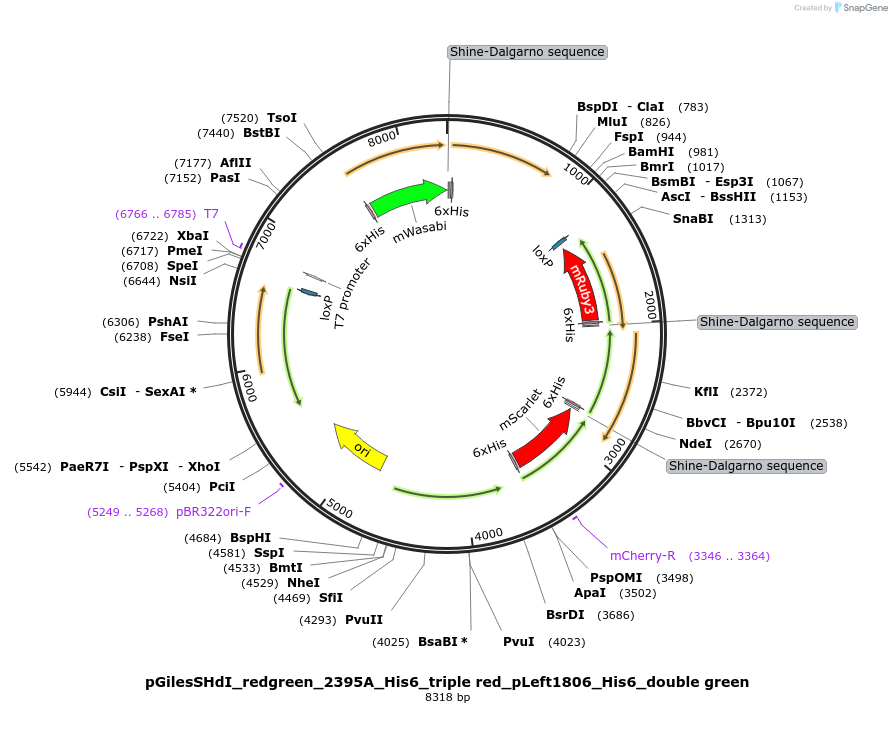

pGilesSHdI_redgreen_2395A_His6_triple red_pLeft1806_His6_double green
(Plasmid #170048)

• Purpose: Tri-Responsive Reporter Gene Construct for redgreen, triple red, and double green
• Depositing Lab: Clifton Barry III
• Publication: Kolbe et al Front Microbiol. 2020 Dec 9;11:591866. doi: 10.3389/fmicb.2020.591866. eCollection 2020.

Backbone

• Vector backbone: pGIlesSHdI
• Vector type: Unspecified

Growth in Bacteria

• Bacterial Resistance(s): Hygromycin, 200 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: Unknown

Gene/Insert 1

• Gene/Insert name: mScarlet
• Insert Size (bp): 692

Gene/Insert 2

• Gene/Insert name: COmScarlet
• Insert Size (bp): 696

Gene/Insert 3

• Gene/Insert name: mRuby3
• Insert Size (bp): 711

Gene/Insert 4

• Gene/Insert name: mWasabi dN
• Insert Size (bp): 717

Gene/Insert 5

• Gene/Insert name: mWasabi CO

Resource Information

• Supplemental Documents:
  • pGilesSHdI_redgreen_2395A_His6_triple red_pLeft1806_His6_double green.gbk

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
