pEPIC1.1
(Plasmid
#169897)
-
Purpose(Empty Backbone) Empty constitutive expression vector with piggyBac, IRES, and mClover3
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 169897 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepEPIC1.1
- Backbone size (bp) 4663
-
Vector typeMammalian Expression ; Avian expression
- Promoter mouse PGK
-
Selectable markersmClover3
-
Tag
/ Fusion Protein
- 3x FLAG 2x StrepII (C terminal on backbone)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Cloning Information
- Cloning method Gibson Cloning
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pEPIC1.1 was a gift from Richard Schneider (Addgene plasmid # 169897 ; http://n2t.net/addgene:169897 ; RRID:Addgene_169897) -
For your References section:
Stable integration of an optimized inducible promoter system enables spatiotemporal control of gene expression throughout avian development. Chu D, Nguyen A, Smith SS, Vavrusova Z, Schneider RA. Biol Open. 2020 Oct 6;9(10). pii: bio.055343. doi: 10.1242/bio.055343. 10.1242/bio.055343 PubMed 32917762

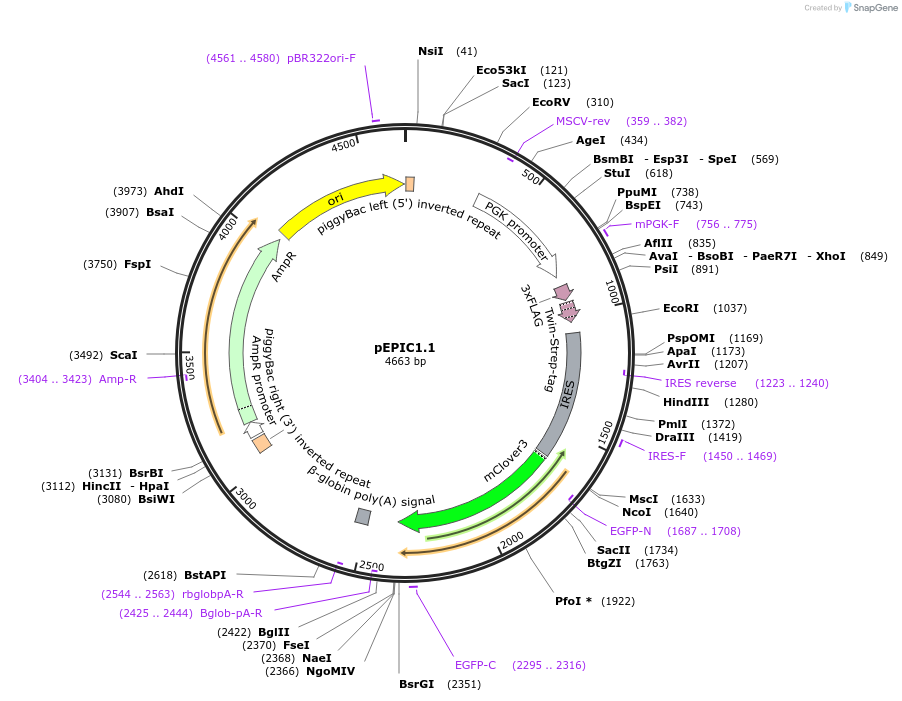

Map uploaded by the depositor.
