pMXS-IRES-BLAST TFR1
(Plasmid #169890)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 169890 Standard format: Plasmid sent in bacteria as agar stab 1 $85

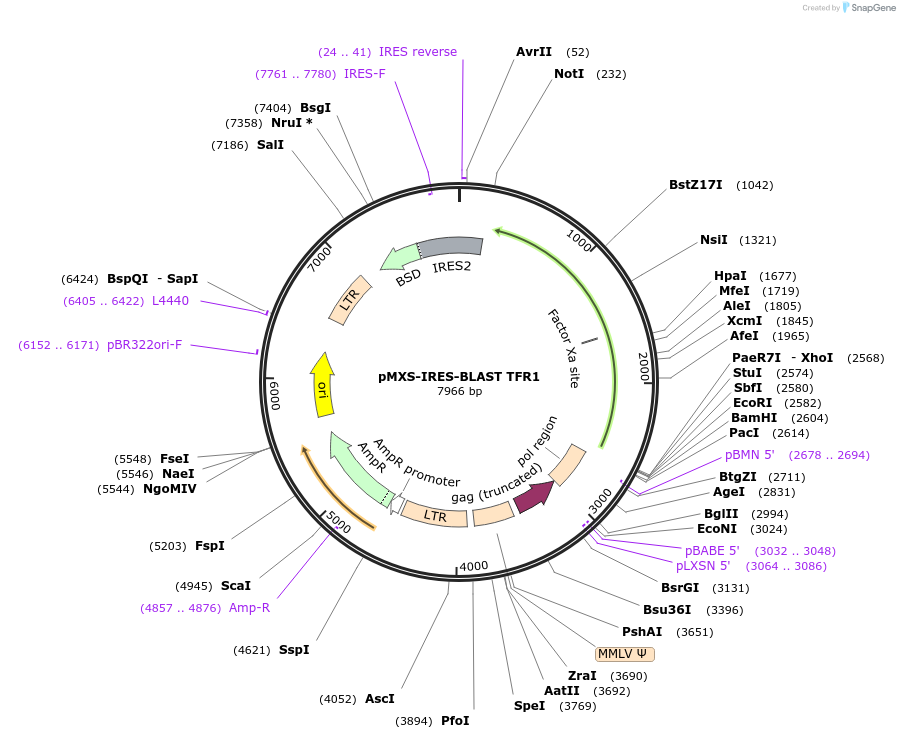

Backbone

  • Vector backbone
    pMXS-IRES-BLAST
  • Backbone size w/o insert (bp) 5600
  • Total vector size (bp) 7900
  • Vector type
    Mammalian Expression, Retroviral
  • Selectable markers
    Blasticidin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    TFRC
  • Alt name
    Transferrin Receptor
  • Alt name
    CD71
  • Alt name
    TFR1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2300
  • Mutation
    TFRC cDNA, lacking 3'UTR regulatory elements
  • GenBank ID
    7037 NM_003234.4
  • Entrez Gene
    TFRC (a.k.a. CD71, IMD46, T9, TFR, TFR1, TR, TRFR, p90)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer AGTAGACGGCATCGCAGCTTGGATA
  • 3′ sequencing primer GGC GGA ATT TAC GTA GCG GCC
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pMXS-IRES-BLAST TFR1 was a gift from Richard Possemato (Addgene plasmid # 169890 ; http://n2t.net/addgene:169890 ; RRID:Addgene_169890)
  • For your References section:

    Iron-sulfur cluster deficiency can be sensed by IRP2 and regulates iron homeostasis and sensitivity to ferroptosis independent of IRP1 and FBXL5. Terzi EM, Sviderskiy VO, Alvarez SW, Whiten GC, Possemato R. Sci Adv. 2021 May 26;7(22). pii: 7/22/eabg4302. doi: 10.1126/sciadv.abg4302. Print 2021 May. 10.1126/sciadv.abg4302 PubMed 34039609
