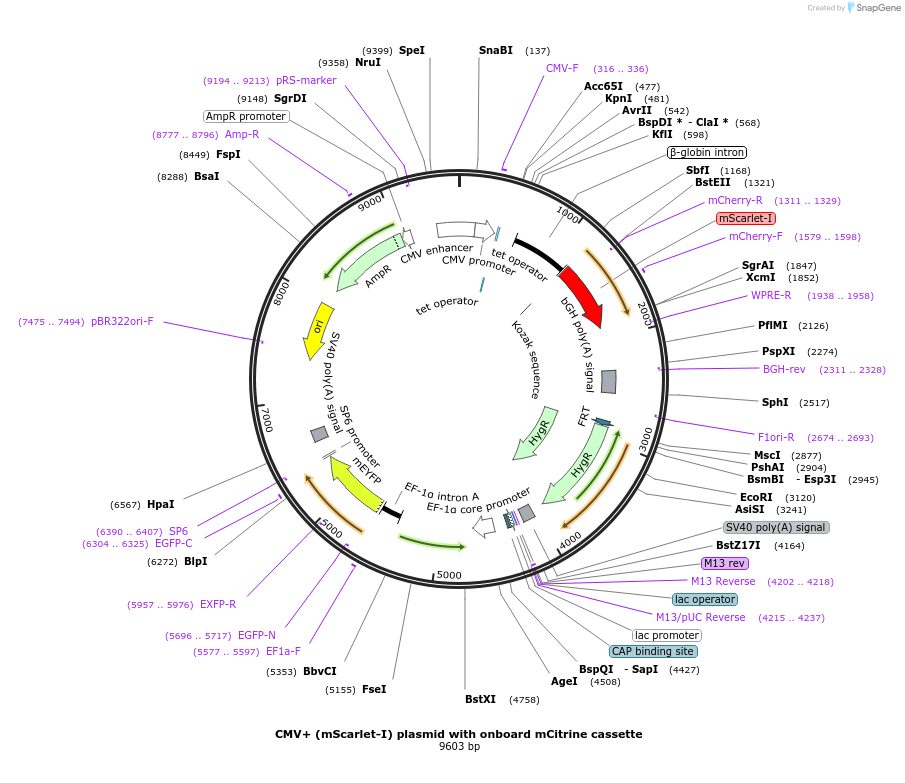

CMV+ (mScarlet-I) plasmid with onboard mCitrine cassette
(Plasmid #169743)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 169743 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA5/FRT
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 8894
  • Total vector size (bp) 9593
  • Modifications to backbone
    TetO2 site and rabbit beta-globin intron II (bGlob intron) are added to the 5' UTR. Woodchuck hepatitis virus post-transcriptional regulatory element (WPRE) is added to the 3' UTR. This plasmid also has a separate mCitrine expression cassette: EF1a promoter-mCitrine-SV40 terminator-bGH terminator.
  • Vector type
    Mammalian Expression, Synthetic Biology
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    mScarlet-I
  • Insert Size (bp)
    699
  • Promoter pCMV-tetO2

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer cgcaaatgggcggtaggcgtg
  • 3′ sequencing primer caaaggcattaaagcagcgtatc
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Note that although the plasmid encodes a hygromycin resistance gene, it is not expressed from the plasmid. It is only expressed after Flp recombinase-mediated chromosomal integration of the plasmid.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    CMV+ (mScarlet-I) plasmid with onboard mCitrine cassette was a gift from Francois St-Pierre (Addgene plasmid # 169743 ; http://n2t.net/addgene:169743 ; RRID:Addgene_169743)

  • For your References section:

    A synthetic circuit for buffering gene dosage variation between individual mammalian cells. Yang J, Lee J, Land MA, Lai S, Igoshin OA, St-Pierre F. Nat Commun. 2021 Jul 5;12(1):4132. doi: 10.1038/s41467-021-23889-0. 10.1038/s41467-021-23889-0 PubMed 34226556
