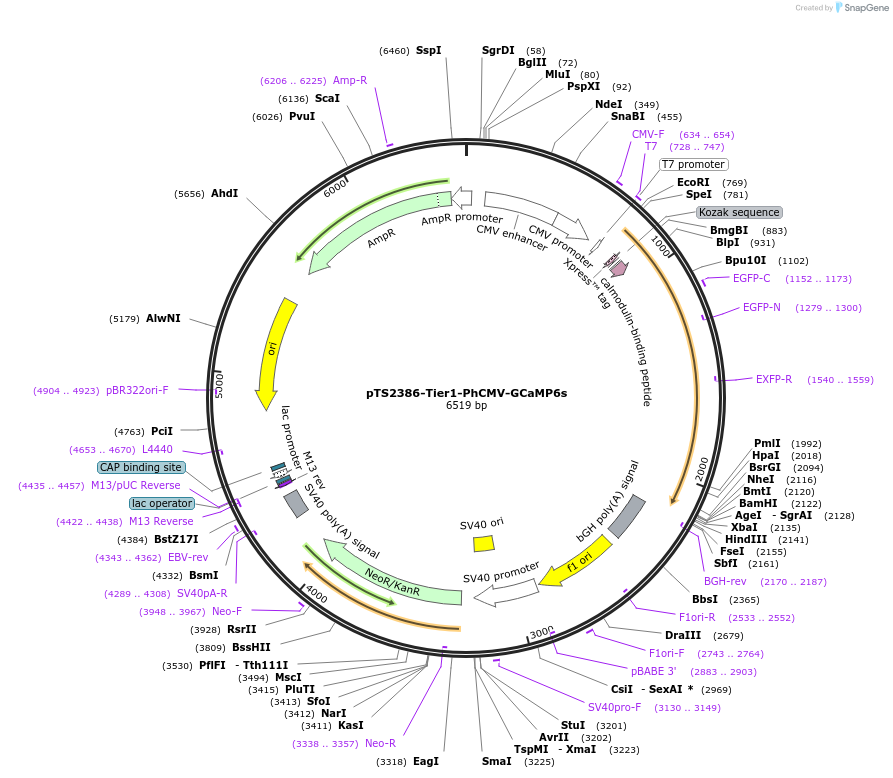

pTS2386-Tier1-PhCMV-GCaMP6s
(Plasmid #169519)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 169519 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pMM1 (pcDNA3.1-based)
  • Backbone size w/o insert (bp) 4435
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    PCMV-driven green fluorescent genetically encoded calcium indicator GCaMP6s
  • Alt name
    PCMV-GCaMP6s
  • Species
    Synthetic
  • Promoter PhCMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Unknown (unknown if destroyed)
  • 5′ sequencing primer AmpStart
  • 3′ sequencing primer BGH-rev
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTS2386-Tier1-PhCMV-GCaMP6s was a gift from Martin Fussenegger (Addgene plasmid # 169519 ; http://n2t.net/addgene:169519 ; RRID:Addgene_169519)

  • For your References section:

    A versatile plasmid architecture for mammalian synthetic biology (VAMSyB). Haellman V, Strittmatter T, Bertschi A, Stucheli P, Fussenegger M. Metab Eng. 2021 Jul;66:41-50. doi: 10.1016/j.ymben.2021.04.003. Epub 2021 Apr 18. 10.1016/j.ymben.2021.04.003 PubMed 33857582
