AAV-hSyn-RiboL1-jGCaMP8f
(Plasmid
#169249)
-
PurposeAAV transfer plasmid for neuronal expression of soma-targeted (RL-10, ribosomal tag) jGCaMP8f, with a flexible GS-linker sequence attaching the ribosomal tag to the jGCaMP8f protein.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 169249 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepAAV
-
Vector typeMammalian Expression, AAV
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameRiboL1-jGCaMP8f
-
SpeciesM. musculus (mouse), R. norvegicus (rat), G. gallus (chicken); A. victoria (jellyfish)
-
Insert Size (bp)1998
- Promoter hSyn
-
Tag
/ Fusion Protein
- 6xHis (N terminal on backbone)
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer TCGTGTCGTGCCTGAGAGCG
- 3′ sequencing primer cagcgtatccacatagcgtaaa (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
A portion of this plasmid was derived from a plasmid made byGCaMP8f from plasmid #162376, RL-10 tag from 158777.
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
AAV-hSyn-RiboL1-jGCaMP8f was a gift from Marianne Fyhn (Addgene plasmid # 169249 ; http://n2t.net/addgene:169249 ; RRID:Addgene_169249) -
For your References section:
An updated suite of viral vectors for in vivo calcium imaging using intracerebral and retro-orbital injections in male mice. Grodem S, Nymoen I, Vatne GH, Rogge FS, Bjornsdottir V, Lensjo KK, Fyhn M. Nat Commun. 2023 Feb 4;14(1):608. doi: 10.1038/s41467-023-36324-3. 10.1038/s41467-023-36324-3 PubMed 36739289

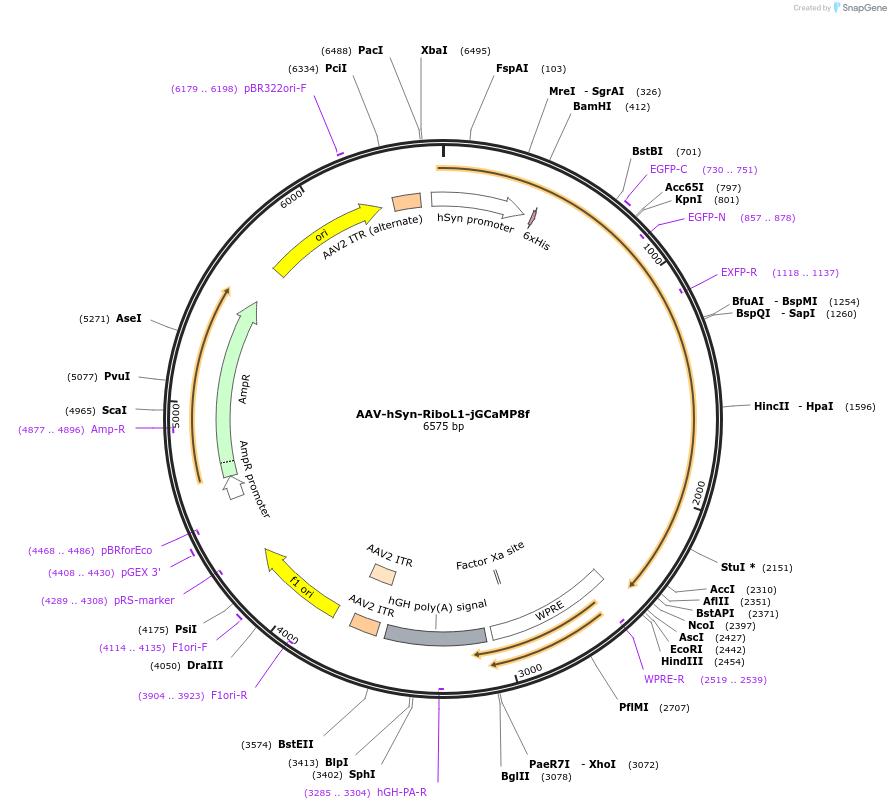

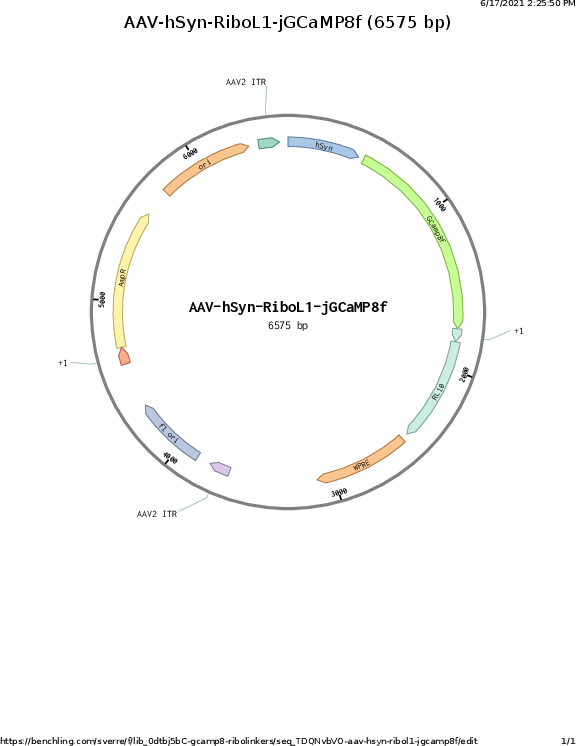

Map uploaded by the depositor.
